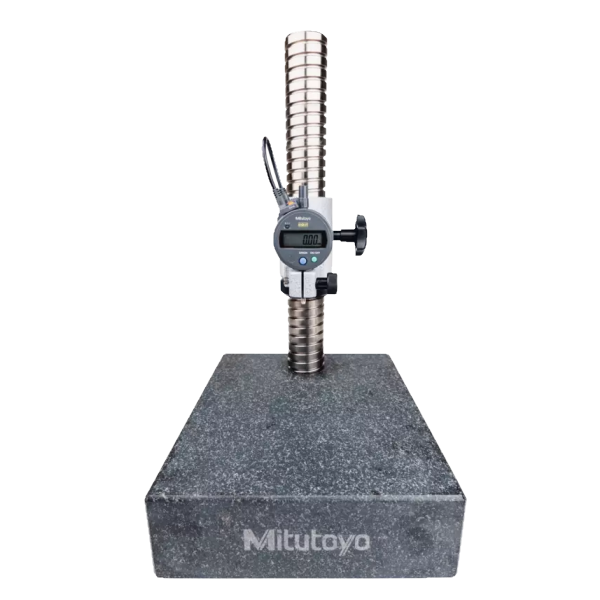

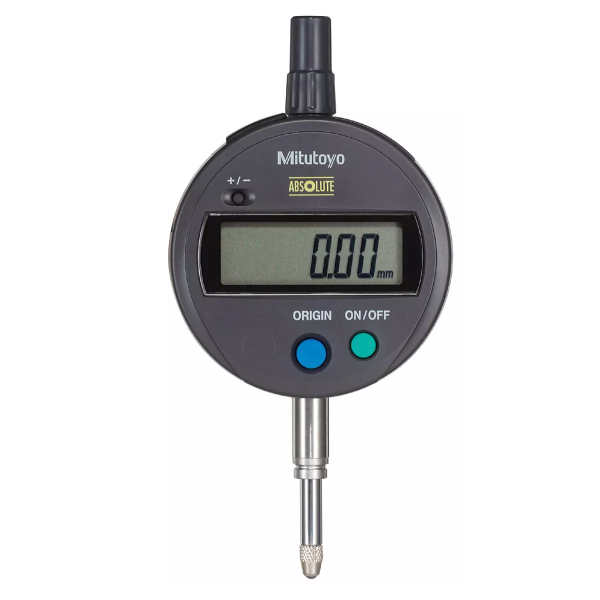

ABSOLUTE Digimatic ID-SX digital indicator Mitutoyo 543-781-10, travel 12.7 mm, resolution 0.01 mm, lug back
- SKU: 543-781-10
- VENDOR: MITUTOYO
Couldn't load pickup availability
Safe and secure payments:
Informazioni di prodotto e di utilizzo
ABSOLUTE Digimatic ID-SX digital indicator Mitutoyo 543-781-10, travel 12.7 mm, resolution 0.01 mm, lug back. ABSOLUTE system: the zero is set only once and remains stored until the batteries are next replaced; Measuring accuracy even at maximum speeds; LCD with easy-to-read 9 mm characters.
Key features
- ABSOLUTE system: the zero is set only once and remains stored until the batteries are next replaced.
- Measuring accuracy even at maximum speeds.
- LCD with easy-to-read 9 mm characters.
- Long battery life
Description
ABSOLUTE Digimatic ID-SX digital indicator
Technical data
| Model | ID-S1012X2 |
| Digital / Analogue | Digital |
| Inch / Metric | Metric |
| Measuring range | 12.7 mm |
| Resolution | 0.01 mm |
| Max. Permissible Error E MPE (Total Range) | 0.02 mm |
| H MPE (Hysteresis error) | 0.02 mm |
| R MPE (Repeatability) | 0.01 mm |
| Measuring force MPL | ≤1.5 N |
| Protection | IP42 |
| Type | EN ISO standards |
| Mass | 150 g |
| Data output | Yes |
| Display | LCD, character height 9 mm |
| Max. response speed | Unlimited |
| Alarm | Low voltage, sensor error, ABS data composition error |
| Stem ∅ | 8 mm |
| Contact point | Carbide ball, thread: M2.5x0.45 |
| Power supply | 1 SR44 battery |
| Battery life | Approx. 18,000 hours (0.001 mm type), approx. 20,000 hours (0.01 mm type) |
| Digital optical scale | ABSOLUTE electrostatic capacitive linear encoder |
| Notes | This digital indicator has a data output but no built-in data button |
| ON/OFF | Yes |
| Selectable counting direction | Yes |
| ORIGIN | Yes |
| Mitutoyo code | 543-781-10 |
Supplied with
Includes SR44 battery · inspection certificate
Compatible accessories
- 905338 – Digimatic cable (1 m)
- 905409 – Digimatic cable (2 m)
- 06AFM380F – USB Input Tool Direct (Digimatic to USB), Digi/Digi2, flat straight type – Mitutoyo 06AFM380F
- 264-623 – U-WAVE fit, buzzer type, wireless transmitter for micrometer – Mitutoyo 264-623
- 264-622 – U-WAVE fit, IP67, wireless transmitter for micrometer – Mitutoyo 264-622
- 264-627 – U-WAVE fit Bluetooth, buzzer type, wireless transmitter for micrometer – Mitutoyo 264-627
- 264-626 – U-WAVE fit Bluetooth, IP67 type, wireless transmitter for micrometer – Mitutoyo 264-626
- 02AZF670 – Plate for U-WAVE transmitter, for ID-C and ID-S indicators – Mitutoyo 02AZF670
- 02AZD790F – U-WAVE cable
- 21JZA295 – Plunger lifting cable Mitutoyo 21JZA295 for indicators, L = 500 mm
- 21EZA198 – Lifting lever (12.7 mm models)
- 21EZA105 – Lifting knob (12.7 mm)
- 903594 – Air Drive Unit for LGS/ID-C/ID-S, for ID-S, ID-C, LGS, measuring range 12.7 mm and 0.5” – Mitutoyo 903594
- 238774 – Rubber bellows
Spare parts and consumables
- 63AAA800 – SR44 1.5 V battery Mitutoyo 63AAA800
- 901312 – Standard contact point
- 21EAA423 – Rubber bellows Mitutoyo 21EAA423 for Digimatic 543 series indicators
Documentation
Selection guide: ABSOLUTE Digimatic ID-SX digital indicators
ABSOLUTE Digimatic ID-SX digital indicator Mitutoyo 543-781-10, travel 12.7 mm, resolution 0.01 mm, lug back. Absolute system: the zero is set only once and remains stored until the batteries are next replaced; measuring accuracy even at the highest speeds; LCD display with easy-to-read 9 mm high characters.
Choose the digital indicator according to travel (12.7 mm) and resolution (0.01 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug back) and the Ø8 mm stem for mounting on stands and fixtures.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: by cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly into Excel or SPC software), or wirelessly with U-WAVE transmitters (USB or Bluetooth receiver). Digital indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check that the spindle slides smoothly and check repeatability on a gauge block; avoid impacts on the contact point.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us, stating the model and serial number.
