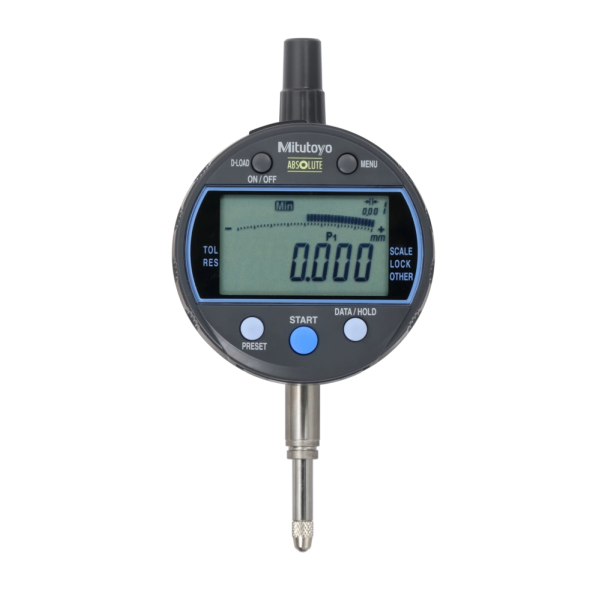

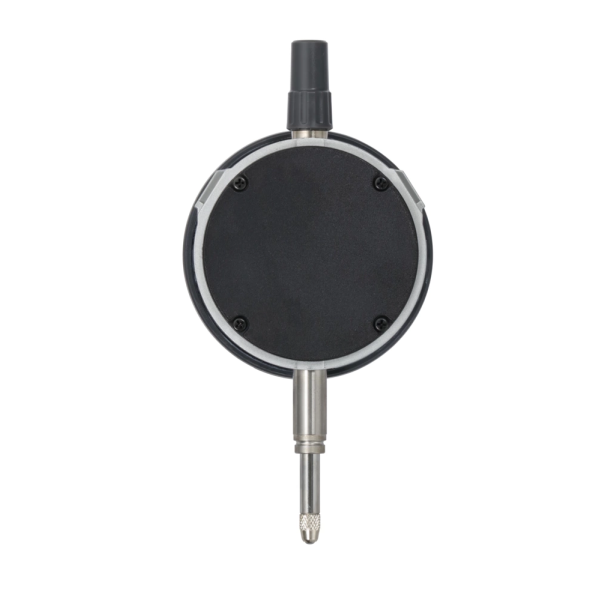

Indicator ID-C 543-310B-10 Mitutoyo - Range: 12.7 mm, Res: 0.001 mm - Flat Back Plate
35% off
€514,00
€791,00
- SKU: 543-310B-10
- VENDOR: MITUTOYO
In stock!
Couldn't load pickup availability
Safe and secure payments:
Informazioni di prodotto e di utilizzo
Product details
Product details
Help in choosing
Help in choosing
Integration and programming
Integration and programming
Calibration and repair
Calibration and repair
Description

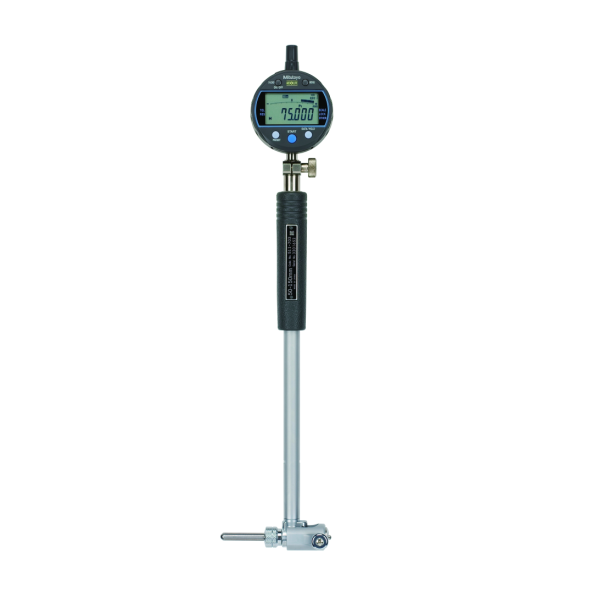

This indicator is designed for inside diameter measurement applications on bore gauges
It offers the following benefits:
- Minimum value holding function that allows you to easily detect a hole diameter
- Analogue bar graph in the display (12 different scales switchable)
- The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement
- GO/±NG tolerance judgement function
- A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
- Easy indicator setup via a setup menu
- A USB interface box can be used to set up the indicator from PC via dedicated software
INNOVACHECK can provide technical support in choosing the right product for the application to be addressed. You can send an email and our support can give you information or suggestions.
INNOVACHECK is not just an online shop. We work closely with integration and customization companies that can offer a 360° service, both in programming and product integration.
A repair service is available on all the products offered. A calibration service and test report issuing service is available on the metrology products.
