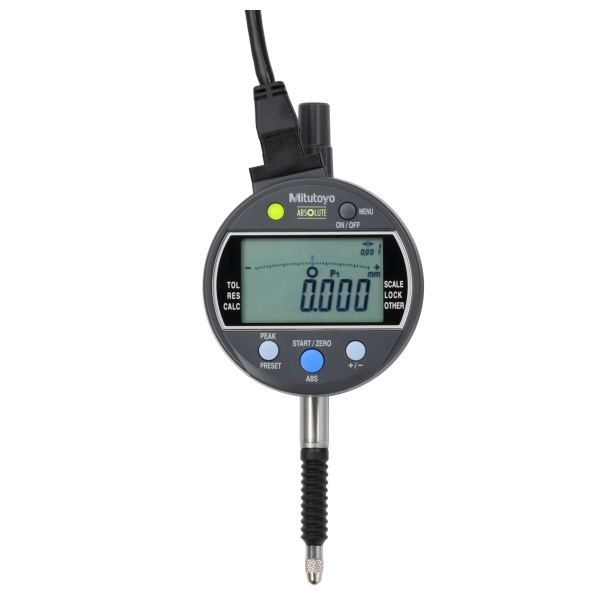

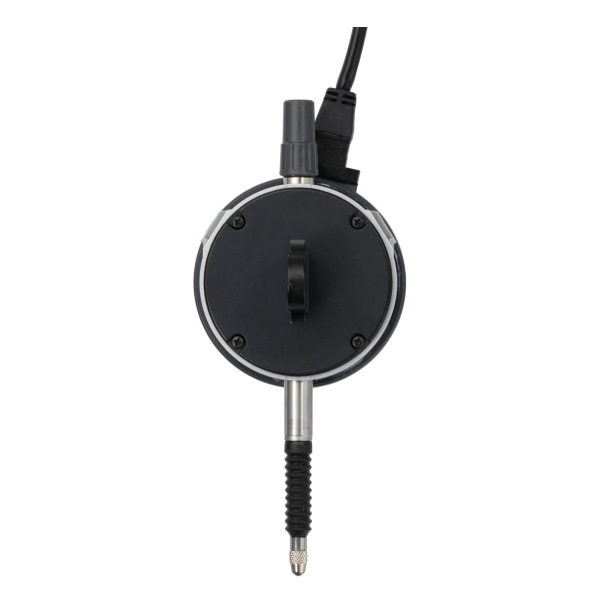

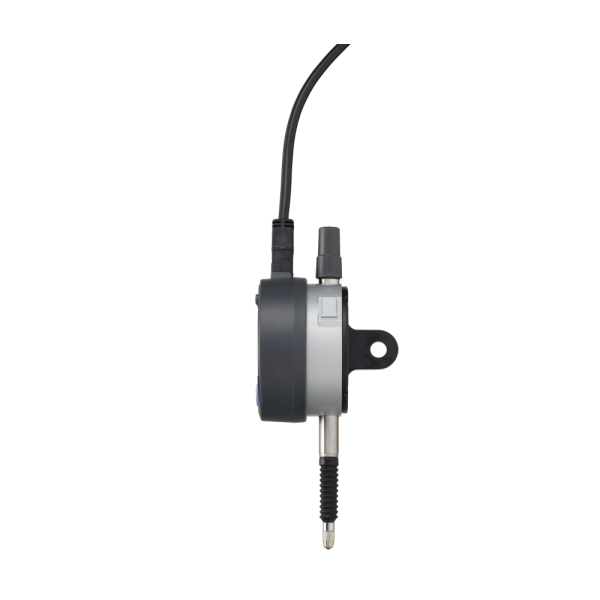

Indicator ID-C 543-350-10 Mitutoyo - Range: 12.7 mm, Res: 0.001 mm - Lug Back Plate
Indicator ID-C 543-350-10 Mitutoyo - Range: 12.7 mm, Res: 0.001 mm - Lug Back Plate
Regular price
€795,00 EUR
Regular price
€1.223,00 EUR
Sale price
€795,00 EUR
Unit price
/
per
Shipping calculated at checkout.
Description
This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.
- Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
- Measures MAX/MIN/RANGE (run-out value).
- Saves three different Preset and Tolerance settings.
- Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
- Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
- Analogue bar graph in the display (12 different scales switchable)
- GO/±NG tolerance judgment function
