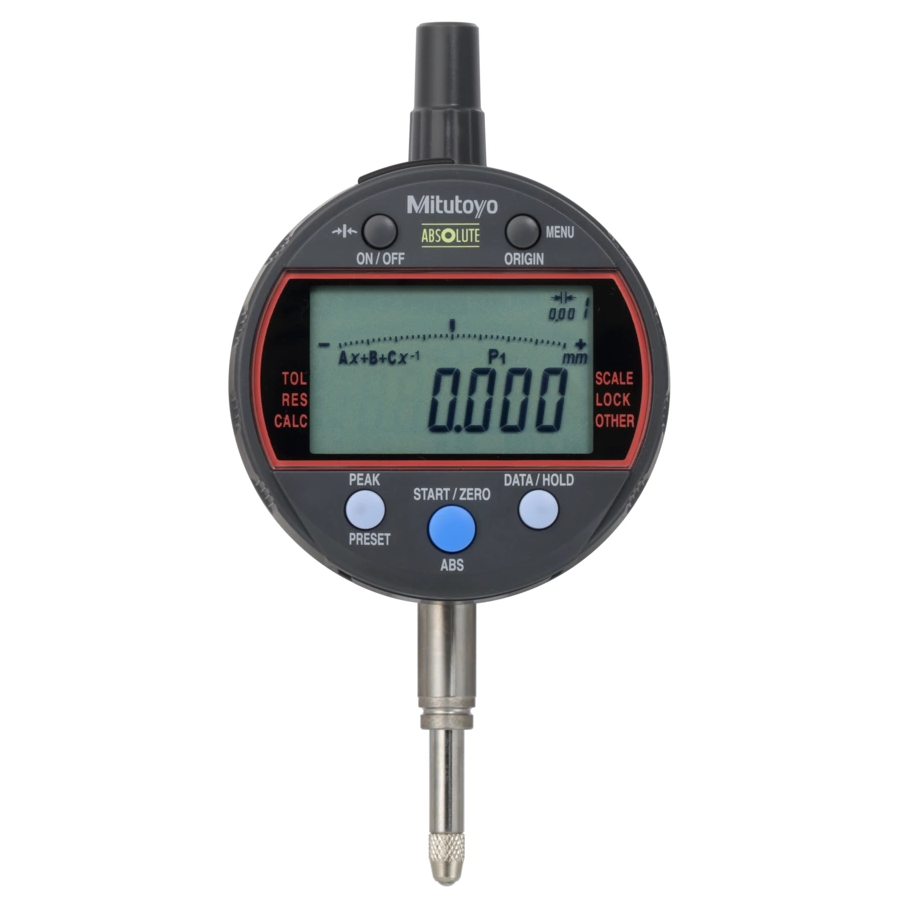

Indicator, Calculation ID-C, 543-340B-10 Mitutoyo - Range: 12.7 mm
Indicator, Calculation ID-C, 543-340B-10 Mitutoyo - Range: 12.7 mm
Regular price
€574,00 EUR
Regular price
€883,00 EUR
Sale price
€574,00 EUR
Unit price
/
per
Shipping calculated at checkout.
Description
This indicator allows you to use a calculation function for the measured value
Ax+B+Cx-1
- The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)
- Coefficients A,B and C are freely definable. X = displacement of the plunger
- Analogue bar graph in the display (14 different scales switchable)
- GO/±NG tolerance judgement function
- MAX/MIN/RANGE function to measure peak values
- A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably
- Easy indicator setup via a setup menu
- A USB interface box can be used to set up the indicator from PC via dedicated software
