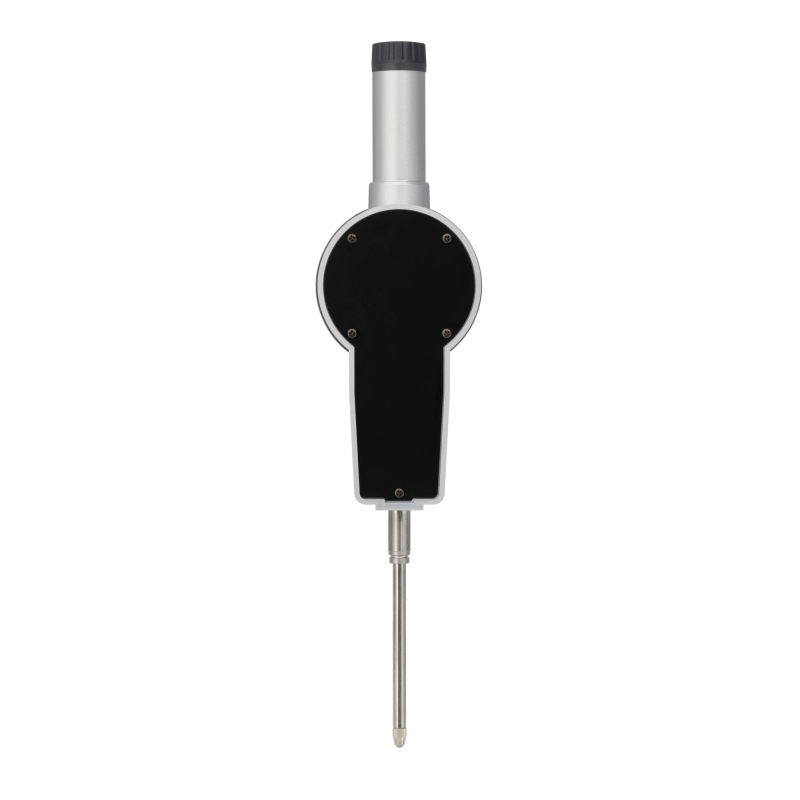

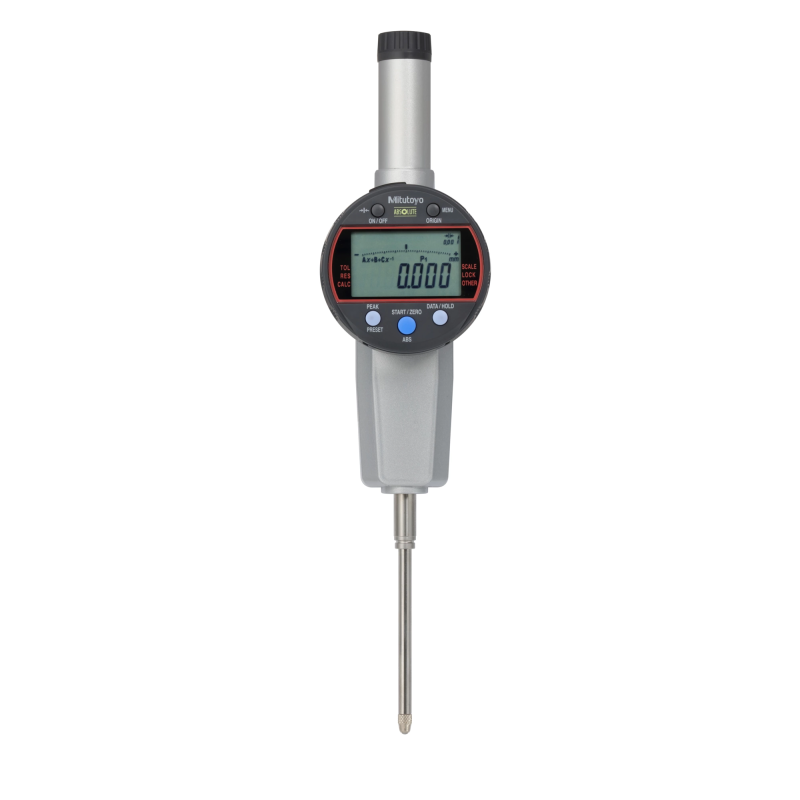

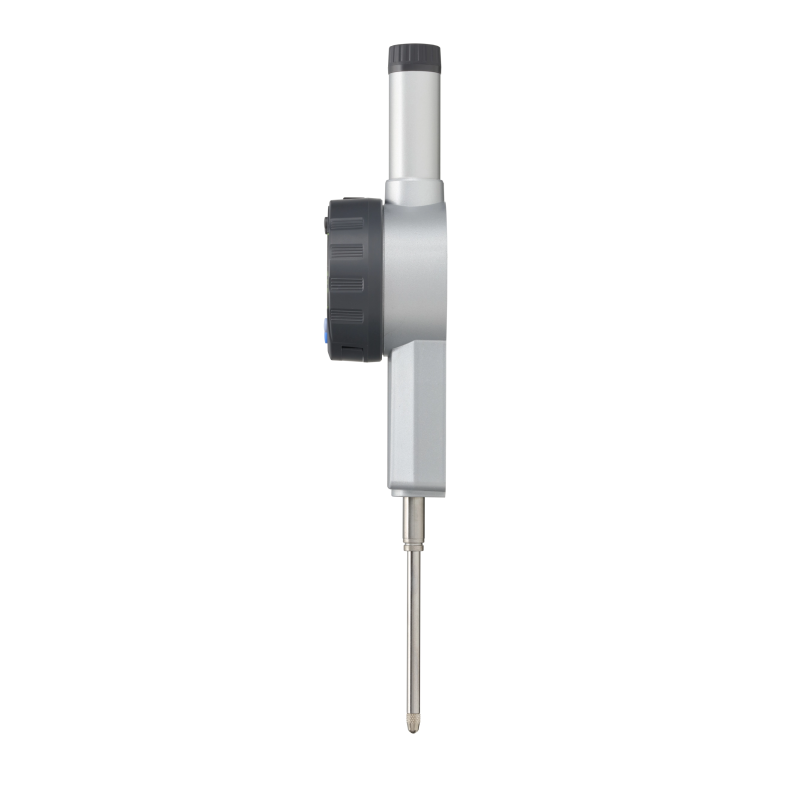

Digital Indicator, Calculation ID-C, 543-595B-10 Mitutoyo
Digital Indicator, Calculation ID-C, 543-595B-10 Mitutoyo
Regular price
€774,00 EUR
Regular price
€1.191,00 EUR
Sale price
€774,00 EUR
Unit price
/
per
Shipping calculated at checkout.
Description
This indicator allows you to use a calculation function for the measured value
Ax+B+Cx-1
- The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)
- Coefficients A,B and C are freely definable. X = displacement of the plunger
- Analogue bar graph in the display (14 different scales switchable)
- GO/±NG tolerance judgement function
- MAX/MIN/RANGE function to measure peak values
- A fast measurement frequency mode(detection cycle 20 ms or 50 times/s) is selectable to measure in the peak detection mode (MAX/MIN/RANGE) more reliably
- Easy indicator setup via a setup menu
- A USB interface box can be used to set up the indicator from PC via dedicated software
Features
| Model: |
ID-C150RXB2
|
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Delivered: |
Including CR2032 battery, lifting handle, certificate of inspection
|
| Range: |
50.8 mm
|
| Max. Permissible Error E MPE (Total Range): |
0.006 mm
|
| H MPE (Hysteresis): |
0.002 mm
|
| R MPE (Repeatability): |
0.002 mm
|
| Measuring force MPL: |
≤2.3 N
|
| Protection: |
IP42
|
| Type: |
EN ISO Standard
|
| Mass: |
260 g
|
| Display: |
LCD, character height 8 mm, 330° rotatable
|
| Max. response speed: |
Unlimited
|
| Measurement frequency (MAX/MIN/RANGE): |
Standard mode: 10 times/s
fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement) |
| Alarm: |
Low voltage, ABS composition error, overflow error, setting error
|
| Stem ∅: |
8 mm
|
| Contact point: |
Carbide ball, thread: M2.5x0.45
|
| Power supply: |
1 battery CR2032
|
| Battery life: |
Standard mode: approx. 1 year
fast mode: approx. 4.5 month |
| Digital Scale: |
Electrostatic capacitance type absolute linear encoder
|
| Remarks: |
Digital step is switchable (12 steps)
|
| ON/OFF: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| PRESET 3x: |
Yes
|
| ABS/INC switchable: |
Yes
|
| Function lock: |
Yes
|
| GO/±NG judgement: |
Yes
|
| DATA/HOLD: |
Yes
|
| Counting direction switchable: |
Yes
|
|
Low voltage alarm: |
Yes
|
| MAX/MIN/RANGE: |
Yes
|
| Calculation function (with formula): |
Yes
|
| Digimatic data output: |
Yes
|
| Analog bar resolution switchable: |
Yes
|
| Fast measurement mode: |
Yes
|
| Selectable resolution: |
Yes
|
| Inch/Metric switchable: |
No
|
