Description

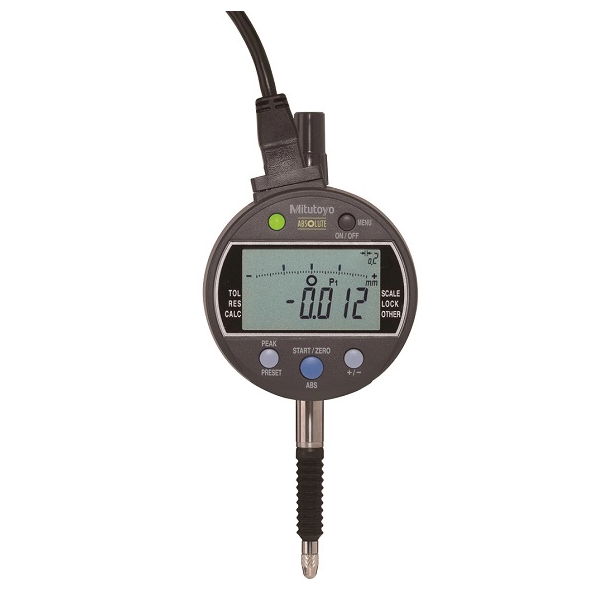

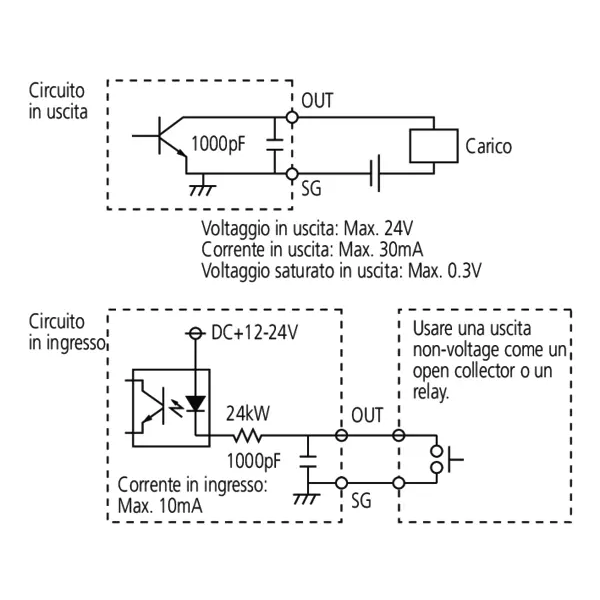

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.
- Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
- Measures MAX/MIN/RANGE (run-out value).
- Saves three different Preset and Tolerance settings.
- Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
- Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
- Analogue bar graph in the display (12 different scales switchable)

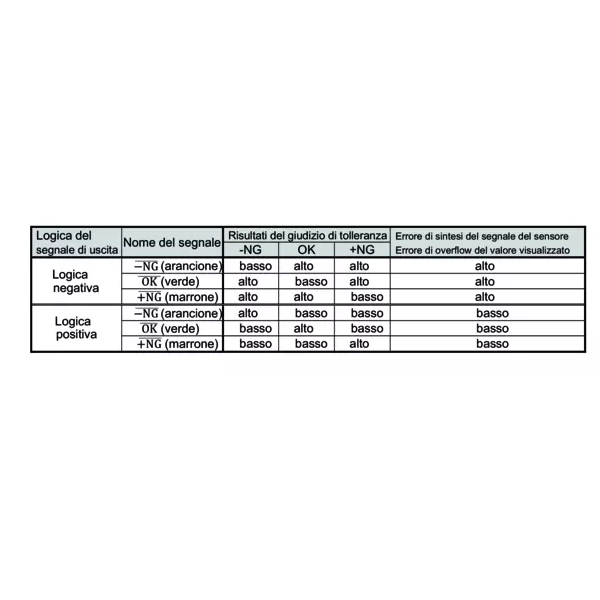

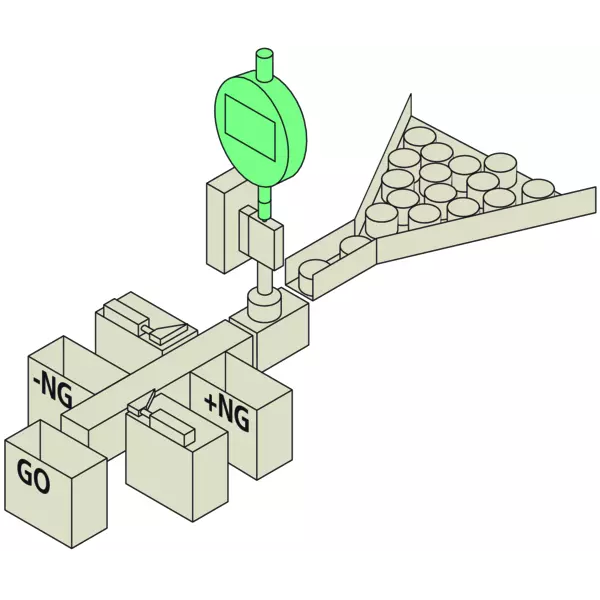

- GO/±NG tolerance judgment function
INNOVACHECK can provide technical support in choosing the right product for the application to be addressed. You can send an email and our support can give you information or suggestions.
INNOVACHECK is not just an online shop. We work closely with integration and customization companies that can offer a 360° service, both in programming and product integration.
A repair service is available on all the products offered. A calibration service and test report issuing service is available on the metrology products.
