Digimatic digital indicator with inside measuring arms Mitutoyo 209-946, measuring range 30-60 mm, resolution 0.01 mm
This product is priced individually. Fill in the form to receive a dedicated quote.
Accessories available
Informazioni di prodotto e di utilizzo

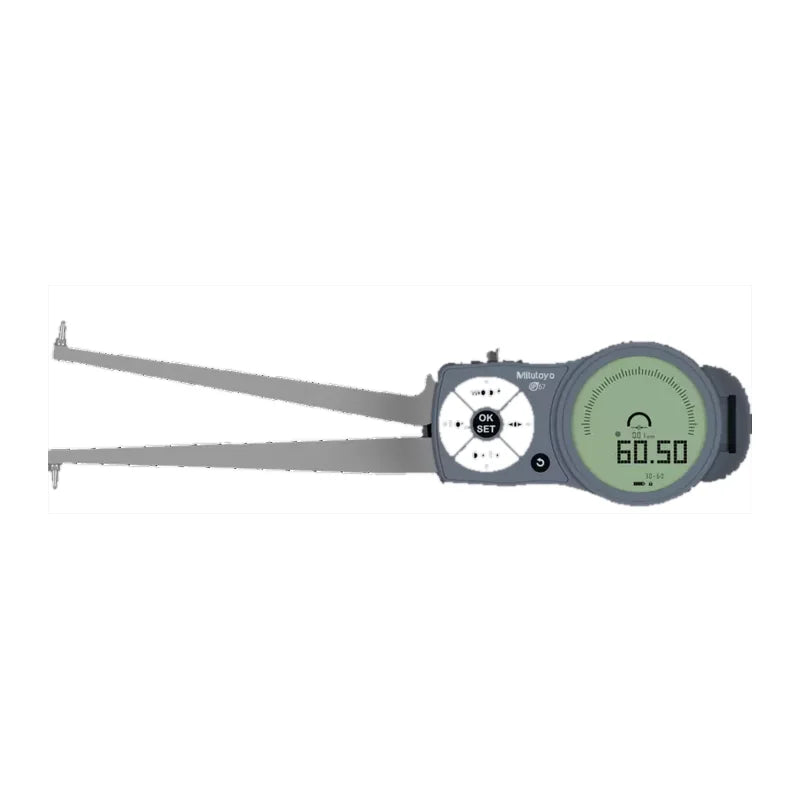

Digimatic digital indicator with inside measuring arms Mitutoyo 209-946, measuring range 30-60 mm, resolution 0.01 mm. Digital indicator with inside measuring arms for measuring in hard-to-reach places with excellent water and dust resistance (IP67).
Key features
- Digital indicator with inside measuring arms for measuring in hard-to-reach places with excellent water and dust resistance (IP67)
Technical data
| Digital / Analogue | Digital |
| Functions | Contact points: carbide ball ø 1.5 mm |
| Measuring range | 30 - 60 mm |
| Type | Fig. 3 |
| Digital resolution | 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm |
| Protection | IP67 |
| Measuring force | 1.2-1.7 N |
| Power supply | 2 LR3 (AAA) batteries |
| Selectable ABS/INC | Yes |
| Automatic power-off after 1/5/10 min of inactivity | Yes |
| OFFSET | Yes |
| mm/inch conversion | Yes |
| HOLD | Yes |
| Mass | 370 g |
| SET button | Yes |
| DATA button | Yes |
| Data logger (100 measured values) | Yes |
| Max. | Yes |
| Min. | Yes |
| Tolerance LED (red/green) | Yes |
| Tolerance judgement | Yes |
| A | 6.2 mm |
| B | 1.8 mm |
| L | 132 mm |
| Mitutoyo code | 209-946 |
Supplied with
Includes 2 LR3 batteries · Inspection certificate
Compatible accessories
- 011551 – Digimatic adapter, for 209 series – Mitutoyo 011551
- 937387 – Digimatic cable (1 m)
- 965013 – Digimatic cable (2 m)
- 06AFM380E – USB Input Tool Direct (Digimatic to USB), 2 m cable, Digimatic/Digimatic 2, round 6-pin type – Mitutoyo 06AFM380E
- 02AZD880G – U-WAVE-T, buzzer type, wireless transmitter – Mitutoyo 02AZD880G
- 02AZD730G – U-WAVE-T, with IP67, wireless transmitter – Mitutoyo 02AZD730G
- 02AZD790E – U-WAVE cable (160 mm)
Spare parts and consumables
- 209-935 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-935, measuring range 5-15 mm, resolution 0.005 mm
- 63AAA438 – Digital caliper holder, for 209-930 up to 209-958 – Mitutoyo 63AAA438
- 209-945 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-945, measuring range 15-65 mm, resolution 0.01 mm
- 209-944 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-944, measuring range 13-43 mm, resolution 0.01 mm
- 209-946 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-946, measuring range 30-60 mm, resolution 0.01 mm
- 209-936 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-936, measuring range 10-30 mm, resolution 0.01 mm
- 209-937 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-937, measuring range 20-40 mm, resolution 0.01 mm
- 209-938 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-938, measuring range 30-50 mm, resolution 0.01 mm
- 209-939 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-939, measuring range 40-60 mm, resolution 0.01 mm
- 209-940 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-940, measuring range 50-70 mm, resolution 0.01 mm
- 209-941 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-941, measuring range 60-80 mm, resolution 0.01 mm
- 209-942 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-942, measuring range 70-90 mm, resolution 0.01 mm
- 209-947 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-947, measuring range 50-80 mm, resolution 0.01 mm
- 209-948 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-948, measuring range 70-100 mm, resolution 0.01 mm
- 209-949 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-949, measuring range 90-120 mm, resolution 0.01 mm
- 209-950 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-950, measuring range 40-90 mm, resolution 0.01 mm
- 209-934 – Digimatic digital indicator with inside measuring arms Mitutoyo 209-934, measuring range 2.5-12.5 mm, resolution 0.005 mm
Documentation
Price and availability
Models without a listed price are offered with a configuration defined together with our technical support team: contact us for a quote stating your application and measuring range.
Selection guide: Digimatic digital indicators with inside lever arms
Digimatic digital indicator with inside lever arms Mitutoyo 209-946, measuring range 30-60 mm, resolution 0.01 mm. Digital lever-arm indicator for inside measurements in hard-to-reach points, with excellent resistance to water and dust (IP67).
Choose the digital indicator according to travel (30 - 60 mm) and resolution (0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug) and the Ø8 mm stem for mounting on stands and fixtures.
If in doubt, contact us: our technical support will recommend the model, measuring range and accessories suited to your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.
Calibration and repair
The instrument is supplied with Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the smoothness of the stem and the repeatability on a gauge block; avoid impacts on the contact point.
After-sales service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us stating the model and serial number.
