• Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-934, measuring range 2.5-12.5 mm, resolution 0.005 mm
Comparatore Digimatic con bracci per interni Mitutoyo 209-934, campo 2,5-12,5 mm, risoluzione 0,005 mm – Mitutoyo 209-934
Comparatore Digimatic con bracci per interni Mitutoyo 209-934, campo 2,5-12,5 mm, risoluzione 0,005 mm – Mitutoyo 209-934

Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-934, measuring range 2.5-12.5 mm, resolution 0.005 mm

Product available on request

This product is priced individually. Fill in the form to receive a dedicated quote.

You are requesting a quote for: Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-934, measuring range 2.5-12.5 mm, resolution 0.005 mm
SKU: 209-934
Manufacturer: MITUTOYO

Accessories available

Adattatore Digimatic, per serie 209 – Mitutoyo 011551
off
MITUTOYO
Digimatic adapter, for 209 series – Mitutoyo ...
Request a quote →
Cavo Digimatic (1 m) – Mitutoyo 937387
off
MITUTOYO
Digimatic cable (1 m) – Mitutoyo 937387
Request a quote →
Cavo U-Wave (160 mm) – Mitutoyo 02AZD790E
off
MITUTOYO
U-WAVE cable (160 mm) – Mitutoyo 02AZD790E
Request a quote →

Informazioni di prodotto e di utilizzo

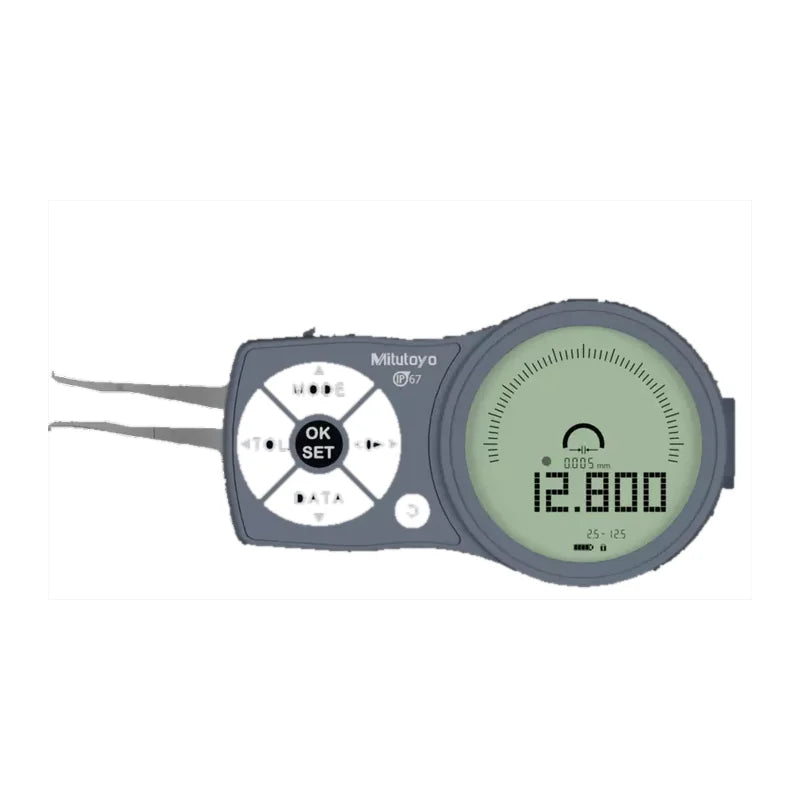

Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-934, measuring range 2.5-12.5 mm, resolution 0.005 mm. Arm-type digital indicator for internal measurement in hard-to-reach places, with excellent water and dust resistance (IP67).

Key features

  • Arm-type digital indicator for internal measurement in hard-to-reach places, with excellent water and dust resistance (IP67)

Technical data

Digital / Analogue Digital
Functions Measuring contacts: carbide knife-edges (0.1 mm radius)
Measuring range 2.5 - 12.5 mm
Type Fig. 1
Digital resolution 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm
Protection IP67
Measuring force 0.8-1.2 N
Power supply 2 LR3 batteries
Selectable ABS/INC Yes
Automatic power-off after 1/5/10 min of inactivity Yes
OFFSET Yes
mm/inch conversion Yes
HOLD Yes
Mass 245 g
SET key Yes
DATA key Yes
Data logger (100 measured values) Yes
Max. Yes
Min. Yes
Tolerance LED (red/green) Yes
Tolerance judgement Yes
A 0.7 mm
B 0.4 mm
L 12 mm
Mitutoyo code 209-934

Supplied with

Includes 2 LR3 batteries · Inspection certificate

Compatible accessories

  • 011551 – Digimatic adapter, for 209 series – Mitutoyo 011551
  • 937387 – Digimatic cable (1 m)
  • 965013 – Digimatic cable (2 m)
  • 06AFM380E – USB Input Tool Direct (Digimatic to USB), 2 m cable, Digimatic/Digimatic 2, round 6-pin type – Mitutoyo 06AFM380E
  • 02AZD880G – U-WAVE-T, buzzer type, wireless transmitter – Mitutoyo 02AZD880G
  • 02AZD730G – U-WAVE-T, with IP67, wireless transmitter – Mitutoyo 02AZD730G
  • 02AZD790E – U-WAVE cable (160 mm)

Spare parts and consumables

  • 209-935 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-935, measuring range 5-15 mm, resolution 0.005 mm
  • 63AAA438 – Holder for digital caliper, for 209-930 up to 209-958 – Mitutoyo 63AAA438
  • 209-945 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-945, measuring range 15-65 mm, resolution 0.01 mm
  • 209-944 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-944, measuring range 13-43 mm, resolution 0.01 mm
  • 209-946 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-946, measuring range 30-60 mm, resolution 0.01 mm
  • 209-936 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-936, measuring range 10-30 mm, resolution 0.01 mm
  • 209-937 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-937, measuring range 20-40 mm, resolution 0.01 mm
  • 209-938 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-938, measuring range 30-50 mm, resolution 0.01 mm
  • 209-939 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-939, measuring range 40-60 mm, resolution 0.01 mm
  • 209-940 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-940, measuring range 50-70 mm, resolution 0.01 mm
  • 209-941 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-941, measuring range 60-80 mm, resolution 0.01 mm
  • 209-942 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-942, measuring range 70-90 mm, resolution 0.01 mm
  • 209-947 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-947, measuring range 50-80 mm, resolution 0.01 mm
  • 209-948 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-948, measuring range 70-100 mm, resolution 0.01 mm
  • 209-949 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-949, measuring range 90-120 mm, resolution 0.01 mm
  • 209-950 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-950, measuring range 40-90 mm, resolution 0.01 mm
  • 209-934 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-934, measuring range 2.5-12.5 mm, resolution 0.005 mm

Documentation

Price and availability

Models without a listed price are offered in a configuration defined together with our technical support team: contact us for a quote stating your application and measuring range.

Selection guide: Digimatic digital indicators with inside lever arms

Digimatic digital indicator with inside lever arms Mitutoyo 209-934, measuring range 2.5-12.5 mm, resolution 0.005 mm. Digital lever-arm indicator for inside measurements in hard-to-reach points, with excellent resistance to water and dust (IP67).

Choose the digital indicator according to travel (2.5 - 12.5 mm) and resolution (0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug) and the Ø8 mm stem for mounting on stands and fixtures.

If in doubt, contact us: our technical support will recommend the model, measuring range and accessories suited to your application.

Integration and programming

Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.

For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.

Calibration and repair

The instrument is supplied with Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the smoothness of the stem and the repeatability on a gauge block; avoid impacts on the contact point.

After-sales service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us stating the model and serial number.
