Upper lifting lever – TESA 01961012
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo

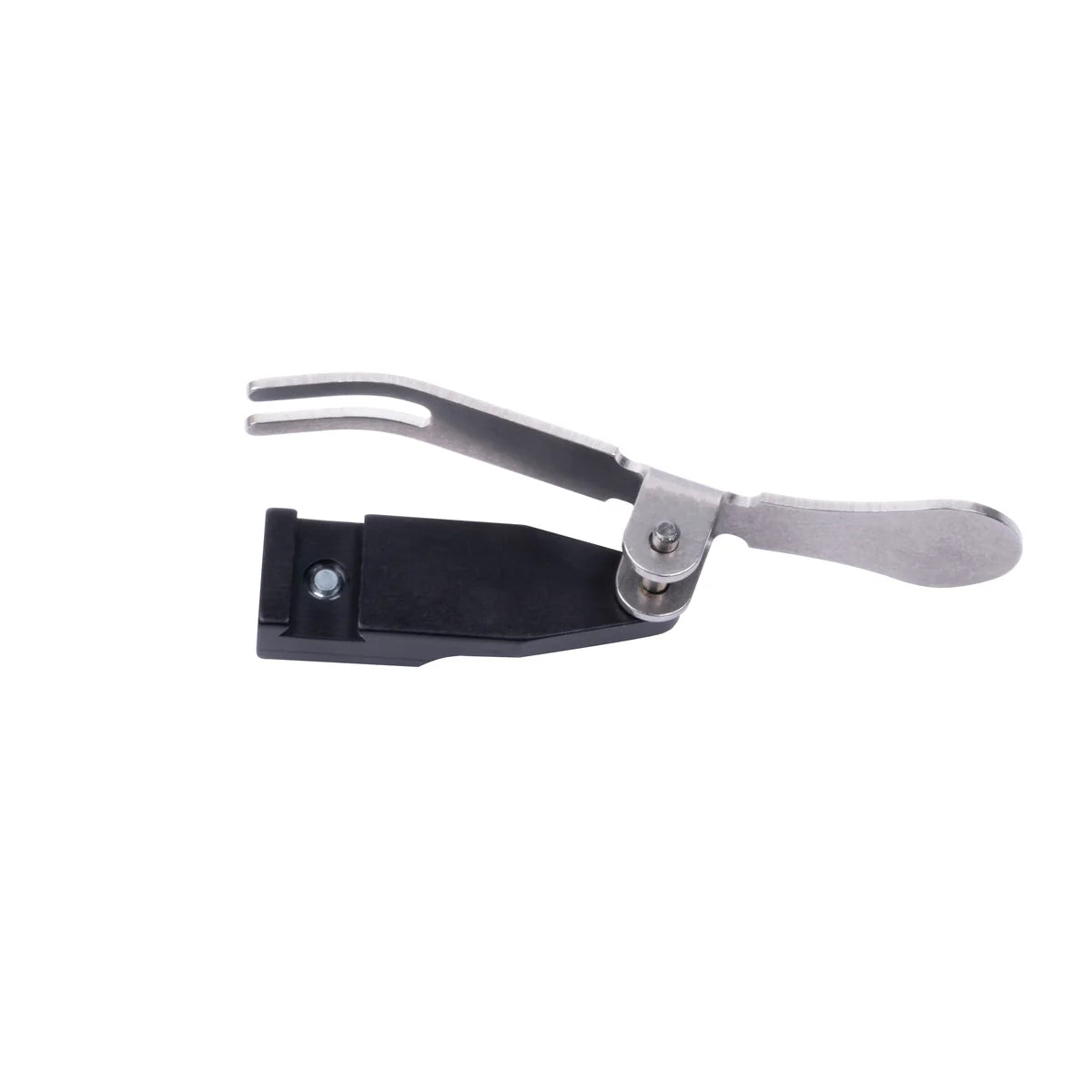

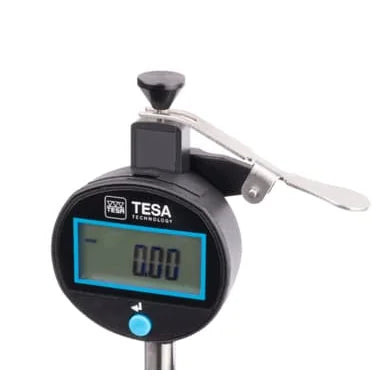

TESA lifting device for the measuring rod of DIALTRONIC COMPACT indicators.
Description
TESA lifting device for the measuring rod of DIALTRONIC COMPACT indicators.
Compatible with
- 01930260 – DIALTRONIC COMPACT 12.5 mm 0.01
- 01930261 – DIALTRONIC COMPACT 12.5 mm 0.001
- 01930263 – DIALTRONIC COMPACT 12.5 mm 0.001 IP67
- 01930300 – DIALTRONIC 12.5 mm 0.01
- 01930301 – DIALTRONIC 12.5 mm 0.001
- 01930303 – DIALTRONIC 12.5 mm 0.001 IP67
- 01930304 – DIALTRONIC 25 mm 0.01
- 01930305 – DIALTRONIC 25 mm 0.001
- 01930307 – DIALTRONIC 25 mm 0.001 IP67
- 01930309 – DIALTRONIC 50 mm 0.001
- 01930311 – DIALTRONIC 100 mm 0.001
- 01930313 – DIALTRONIC 150 mm 0.001
Documentation
- Document: 12-01-17-catalog extract-lifting devices for the measuring rod of
- Document: 12-01-17-catalog extract-DIALTRONIC COMPACT series cat indicators
- Data sheet / dimensions: product info dialtronic compact it
- User manual: user manual dialtronic compact fr en it
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.
Selection guide: Accessories
TESA spindle lifting device for DIALTRONIC COMPACT indicators.
Choose the indicator according to the travel (12.7 or 25.4 mm) and the resolution (0.01 or 0.001 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug) and the Ø8 mm stem for mounting on stands and fixtures.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
This model is without data output: readings are taken on the display. If you need to record measurements on a PC, choose the "with data output" version of the same series, which can be connected via a TESA cable or TESA Wireless.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check that the stem moves freely and the repeatability on a gauge block; avoid impacts on the contact point.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
