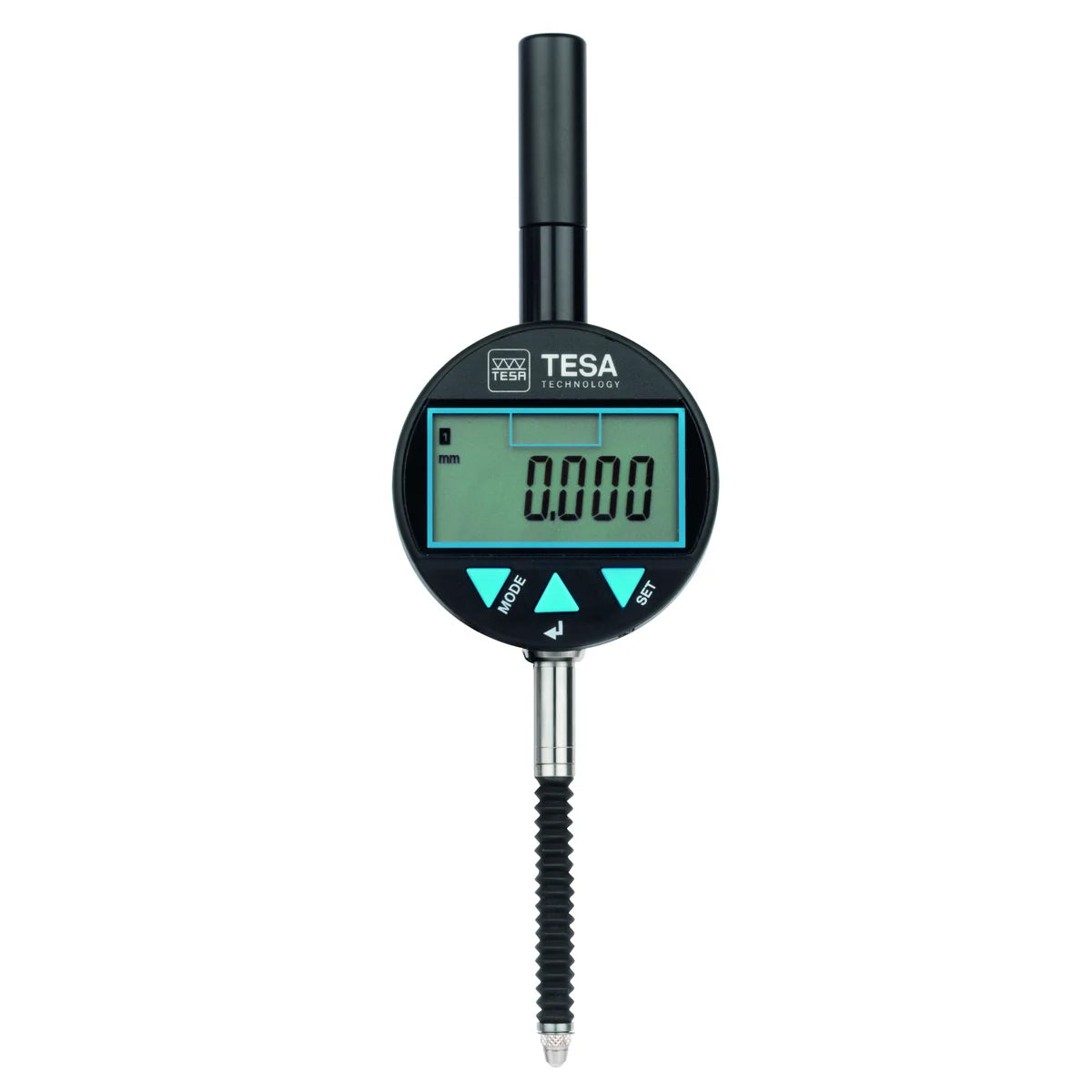

DIALTRONIC 25 mm 0.001 IP67 – TESA 01930307
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo
TESA DIALTRONIC digital indicator, 25 mm / 1 in, resolution 0.01 or 0.001 mm (selectable), IP67, RS232 data output.
Key features
- Lower and upper tolerances can be set
- Dynamic measurement Min / Max / Max-Min
- Two stored references (Ref 1 / Ref 2)
- Selectable resolution 0.01 or 0.001 mm
Description
TESA – DIALTRONIC series digital indicator. Zero setting / Preset; mm / in selection; measuring direction selection; automatic or manual stand-by; measured value hold; setting of lower and upper tolerances; dynamic measurement Min / Max / Max-Min; selection of Ref 1 or Ref 2 (Preset and tolerance stored); multiplication factor; keypad lock; resolution selection (0.01 or 0.001 mm); data transmission via cable or wireless (Bluetooth® models).
Technical data
| performance | manufacturer's standard |
| TESA code | 01930307 |
Supplied with
Indicator with Ø 3 mm ball contact point fitted · Quick start guide
Documentation
- Document: 12-01-26-catalog extract-digital indicators cat indicators it
- Document: 12-01-26-catalog extract-DIALTRONIC series measuring range 25 mm c
- Data sheet / dimensions: product info dialtronic it
- User manual: user manual dialtronic fr en it de es
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.
Selection guide: DIALTRONIC series, measuring range 25 mm
TESA digital indicator DIALTRONIC, 25 mm / 1 in, resolution 0.01 or 0.001 mm (selectable), IP67, RS232 data output.
Choose the indicator according to the travel (12.7 or 25.4 mm) and the resolution (0.01 or 0.001 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug) and the Ø8 mm stem for mounting on stands and fixtures.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
TESA instruments with data output transfer measurements using the TESA protocol: by cable with data button to a TLC/USB cable (the PC receives them as keyboard input, directly in Excel or in SPC software), or wirelessly with the TESA Wireless transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check that the stem moves freely and the repeatability on a gauge block; avoid impacts on the contact point.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
