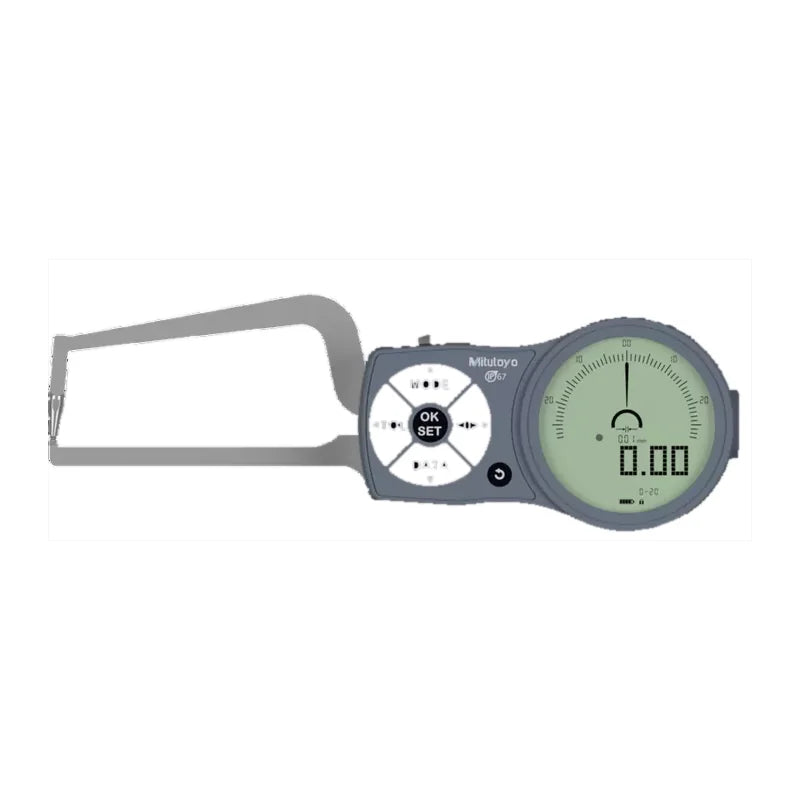

Digimatic arm-type digital indicator for external measurement Mitutoyo 209-933, measuring range 0-20 mm, resolution 0.01 mm
This product is priced individually. Fill in the form to receive a dedicated quote.
Accessories available
Informazioni di prodotto e di utilizzo
Digimatic arm-type digital indicator for external measurement Mitutoyo 209-933, measuring range 0-20 mm, resolution 0.01 mm. Arm-type digital indicator for external measurement in hard-to-reach places; Excellent water and dust resistance (IP67).
Key features
- Arm-type digital indicator for external measurement in hard-to-reach places
- Excellent water and dust resistance (IP67)
Technical data
| Digital / Analogue | Digital |
| Inch - Metric | mm / inch |
| Measuring range | 0 - 20 mm |
| Resolution | 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm |
| Protection | IP67 |
| Measuring force | 1.1-1.6 N |
| Power supply | 2 LR3 batteries |
| Selectable ABS/INC | Yes |
| Automatic power-off after 1/5/10 min of inactivity | Yes |
| Selectable analogue measuring range | Yes |
| OFFSET | Yes |
| Type | Fig. 2 |
| Hb | 24.7 mm |
| Hf | 2.5 mm |
| mm/inch conversion | Yes |
| HOLD | Yes |
| Mass | 430 g |
| SET key | Yes |
| DATA key | Yes |
| Data logger (100 measured values) | Yes |
| Max. | Yes |
| Min. | Yes |
| Tolerance LED (red/green) | Yes |
| Tolerance judgement | Yes |
| L | 86 mm |
| Mitutoyo code | 209-933 |
Supplied with
Includes 2 LR3 batteries · Inspection certificate
Compatible accessories
- 011551 – Digimatic adapter, for 209 series – Mitutoyo 011551
- 937387 – Digimatic cable (1 m)
- 965013 – Digimatic cable (2 m)
- 06AFM380E – USB Input Tool Direct (Digimatic to USB), 2 m cable, Digimatic/Digimatic 2, round 6-pin type – Mitutoyo 06AFM380E
- 02AZD880G – U-WAVE-T, buzzer type, wireless transmitter – Mitutoyo 02AZD880G
- 02AZD730G – U-WAVE-T, with IP67, wireless transmitter – Mitutoyo 02AZD730G
- 02AZD790E – U-WAVE cable (160 mm)
- 63AAA438 – Holder for digital caliper, for 209-930 up to 209-958 – Mitutoyo 63AAA438
- 63AAA437 – Holder for digital caliper, for 209-901 up to 209-924 – Mitutoyo 63AAA437
Spare parts and consumables
- 209-931 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-931, measuring range 0-10 mm, resolution 0.005 mm
- 209-953 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-953, measuring range 0-30 mm, resolution 0.01 mm
- 209-930 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-930, measuring range 0-10 mm, resolution 0.005 mm
- 209-933 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-933, measuring range 0-20 mm, resolution 0.01 mm
- 209-951 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-951, measuring range 0-30 mm, resolution 0.01 mm
- 209-952 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-952, measuring range 0-30 mm, resolution 0.01 mm
- 209-957 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-957, measuring range 0-50 mm, resolution 0.01 mm
- 209-958 – Digimatic arm-type digital indicator for internal measurement Mitutoyo 209-958, measuring range 0-50 mm, resolution 0.01 mm
- 209-932 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-932, measuring range 0-20 mm, resolution 0.01 mm
- 209-943 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-943, measuring range 0-10 mm, resolution 0.005 mm
- 209-954 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-954, measuring range 0-50 mm, resolution 0.01 mm
- 209-955 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-955, measuring range 0-50 mm, resolution 0.01 mm
- 209-956 – Digimatic arm-type digital indicator for external measurement Mitutoyo 209-956, measuring range 0-50 mm, resolution 0.01 mm
Documentation
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support team: contact us for a quote stating your application and measuring range.
Selection guide: Digimatic digital indicators with outside lever arms
Digimatic digital indicator with outside lever arms Mitutoyo 209-933, measuring range 0-20 mm, resolution 0.01 mm. Digital lever-arm indicator for outside measurements in hard-to-reach points; excellent resistance to water and dust (IP67).
Choose the digital indicator according to travel (0 - 20 mm) and resolution (0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug) and the Ø8 mm stem for mounting on stands and fixtures.
If in doubt, contact us: our technical support will recommend the model, measuring range and accessories suited to your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.
Calibration and repair
The instrument is supplied with Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the smoothness of the stem and the repeatability on a gauge block; avoid impacts on the contact point.
After-sales service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us stating the model and serial number.
