ABSOLUTE Digimatic ABS ID-U – campo 25.4 mm – digital indicator Mitutoyo 575-121
- SKU: 575-121
- VENDOR: MITUTOYO
Couldn't load pickup availability
Safe and secure payments:
Informazioni di prodotto e di utilizzo

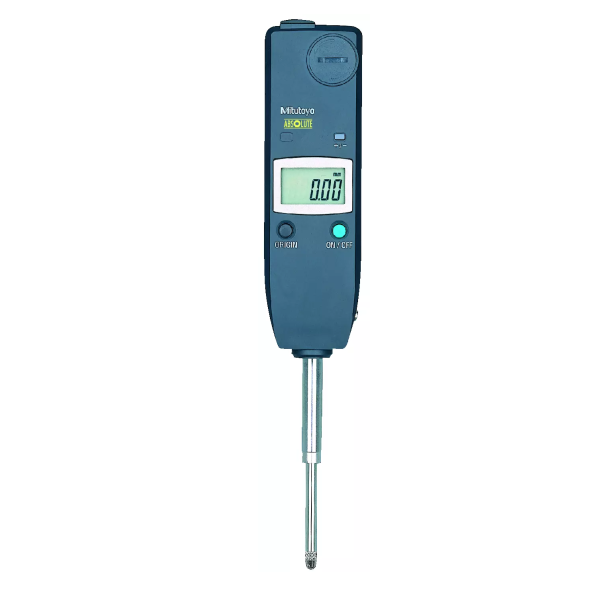

ABSOLUTE Digimatic ABS ID-U digital indicator / Measuring range: 25.4 mm. The zero position is set only once and stored until the batteries are next replaced; Measuring accuracy even at maximum speeds. Large, easy-to-read characters on the display.
Key features
- The zero position is set only once and stored until the batteries are next replaced
- Measuring accuracy even at maximum speeds. Large, easy-to-read characters on the display
Description
Mitutoyo digital indicator offering excellent value for money. The slim body and excellent battery life make it suitable for installation in measuring fixtures or jigs where space is limited. ABSOLUTE system, for error-free measurement at high speed. Digimatic data output.

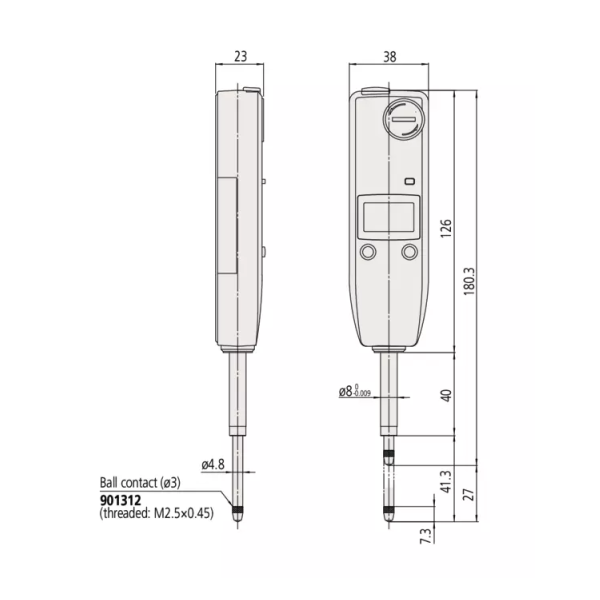

Technical data
| Model | ID-U1025 |
| Digital / Analogue | Digital |
| Inch - Metric | Metric |
| Measuring range | 25.4 mm |
| Resolution | 0.01 mm |
| Max. Permissible Error E MPE (Total Range) | 0.02 mm |
| H MPE (Hysteresis Error) | 0.02 mm |
| R MPE (Repeatability) | 0.01 mm |
| Measuring force MPL | ≤1.8 N |
| Protection | IP42 |
| Type | EN ISO standard |
| Measuring force | ≤ 1.8 N |
| Data output | Yes |
| Display | LCD, character height: 8.5 mm |
| Max. response speed | Unlimited |
| Alarm | Low voltage, count value error |
| Stem ∅ | 8 mm |
| Contact point | Carbide ball, thread M 2.5 x 0.45 mm |
| Power supply | 1 SR-44 battery |
| Battery life | Approx. 20000 hours |
| Digital scale | ABSOLUTE electrostatic capacitive linear encoder |
| Notes | Digital indicator without data send button. The USB-ITPAK software is required to use the USB Input Tool Direct cable (optional accessory). |
| ON/OFF | Yes |
| Selectable count direction | Yes |
| ORIGIN | Yes |
| Mass | 140 g |
| Mitutoyo code | 575-121 |
Supplied with
Supplied in a box with SR44 battery and stem lifting knob 137693
Compatible accessories
- 21EAA426 – Stem lifting knob Mitutoyo 21EAA426 for indicators
- 905338 – Digimatic cable (1 m)
- 905409 – Digimatic cable (2 m)
- 06AFM380F – USB Input Tool Direct (Digimatic to USB), Digi/Digi2, flat straight type – Mitutoyo 06AFM380F
- 02AZD880G – U-WAVE-T, buzzer type, wireless transmitter – Mitutoyo 02AZD880G
- 02AZD730G – U-WAVE-T, with IP67, wireless transmitter – Mitutoyo 02AZD730G
- 02AZD790F – U-WAVE cable
- 21JZA295 – Stem lifting cable Mitutoyo 21JZA295 for indicators, L = 500 mm
Spare parts and consumables
- 63AAA800 – SR44 1.5 V battery Mitutoyo 63AAA800
- 901312 – Standard contact point
- 575-121 – ABSOLUTE Digimatic ABS ID-U digital indicator / Measuring range: 25.4 mm
Documentation
Selection guide: ABSOLUTE Digimatic ID-U digital indicators
ABSOLUTE Digimatic ABS ID-U digital indicator / Measuring range: 25.4 mm. The zero position is set only once and stored until the batteries are next replaced; measuring accuracy even at the highest speeds. Large-character display, easy to read.
Choose the digital indicator according to travel (25.4 mm) and resolution (0.01 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug back) and the Ø8 mm stem for mounting on stands and fixtures.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: by cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly into Excel or SPC software), or wirelessly with U-WAVE transmitters (USB or Bluetooth receiver). Digital indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check that the spindle slides smoothly and check repeatability on a gauge block; avoid impacts on the contact point.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us, stating the model and serial number.
