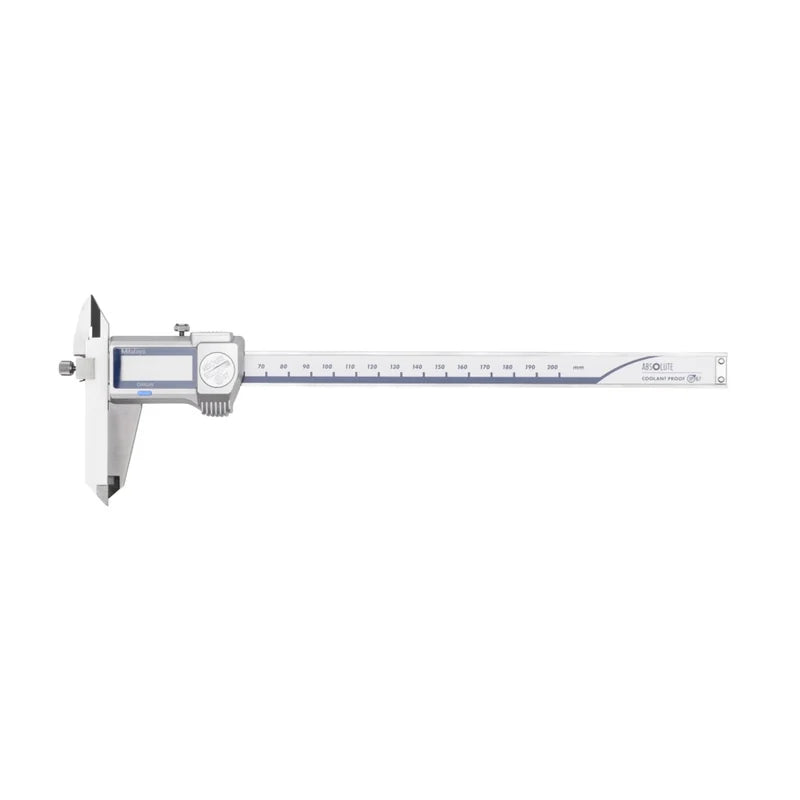

Caliper with adjustable jaw Mitutoyo 573-612-20, measuring range 0-200 mm, IP67
This product is priced individually. Fill in the form to receive a dedicated quote.
Accessories available
Informazioni di prodotto e di utilizzo
Caliper with adjustable jaw Mitutoyo 573-612-20, measuring range 0-200 mm, IP67. Digimatic models; The jaw mounted on the horizontal beam can be adjusted to make it easier to measure stepped sections and workpieces with awkward features; With depth rod and data output.
Key features
- Digimatic models
- The jaw mounted on the horizontal beam can be adjusted to make it easier to measure stepped sections and workpieces with awkward features
- With depth rod and data output
Description
Caliper with adjustable measuring jaw and depth rod
Technical data
| Measuring range | 0–200 mm |
| Depth rod | Flat |
| Maximum permissible error (MPE) (full range) | ±0.02 mm |
| Maximum permissible error S MPE | ±0.04 mm |
| Resolution | 0.01 mm |
| Max. response speed | Unlimited |
| Display | LCD, character height 9.0 mm (150.0, 200.0 mm) 11.0 mm (300.0 mm) |
| ORIGIN | Yes |
| Automatic power-off after 20 minutes of inactivity | Yes |
| Low-voltage alarm | Yes |
| Data output | Yes |
| Battery life | Approx. 5 years under normal use |
| Mass | 198 g |
| a | 95 mm |
| b | 10 mm |
| c | 50 mm |
| d | 38.5 mm |
| Mitutoyo code | 573-612-20 |
Supplied with
Boxed, with SR44 battery
Compatible accessories
- 06AFM380A – USB Input Tool Direct (Digimatic to USB), Digimatic /2, with data button, IP caliper type – Mitutoyo 06AFM380A
- 264-620 – U-WAVE fit, IP67 model, wireless transmitter for caliper – Mitutoyo 264-620
- 264-621 – U-WAVE fit, buzzer type, wireless transmitter for caliper – Mitutoyo 264-621
- 264-624 – U-WAVE fit Bluetooth, IP67 type, wireless transmitter for caliper – Mitutoyo 264-624
- 264-625 – U-WAVE fit Bluetooth, with buzzer, wireless transmitter for caliper – Mitutoyo 264-625
- 02AZF310 – Connection unit for IP caliper, micrometer, with data button for U-WAVE fit, U-WAVE fit Bluetooth – Mitutoyo 02AZF310
Spare parts and consumables
- 63AAA800 – SR44 1.5 V battery Mitutoyo 63AAA800
- 573-602-20 – Caliper with adjustable jaw Mitutoyo 573-602-20, measuring range 0-200 mm, with thumb roller, IP67
- 573-611-20 – Caliper with adjustable jaw Mitutoyo 573-611-20, measuring range 0-150 mm, IP67
- 573-612-20 – Caliper with adjustable jaw Mitutoyo 573-612-20, measuring range 0-200 mm, IP67
- 573-614-20 – Caliper with adjustable jaw Mitutoyo 573-614-20, measuring range 0-300 mm, IP67
- 573-601-20 – Caliper with adjustable jaw Mitutoyo 573-601-20, measuring range 0-150 mm, with thumb roller, IP67
- 573-604-20 – Caliper with adjustable jaw Mitutoyo 573-604-20, measuring range 0-300 mm, with thumb roller, IP67
Documentation
- Brochure: prit 1563 digimatic calipers it
- Document: 10-98-78-catalog extract-calibri con becco regolabile cat2627 p18
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.
Selection guide: Calipers with adjustable jaw
Caliper with adjustable jaw Mitutoyo 573-612-20, measuring range 0-200 mm, IP67. Digimatic models; the jaw mounted on the horizontal rod can be adjusted to make it easier to measure stepped sections and parts with awkward features; with depth rod and data output.
Choose the caliper according to measuring range (0–200 mm), environment (IP67 for coolants and dust; standard AOS for the workshop and metrology room; carbon fibre for large ranges and light weight) and jaw shape (standard; knife-edge for grooves and small holes; carbide-tipped for abrasive surfaces; extra-long for deep features). Models "with data output" let you transfer measurements to a PC or tablet using Digimatic cables or U-WAVE.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.
Calibration and repair
The instrument is supplied with Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER manages it through accredited laboratories. Periodically check the zero with the jaws closed and that the slider has no play; clean the beam and jaws after use with coolants.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us, stating the model and serial number.
