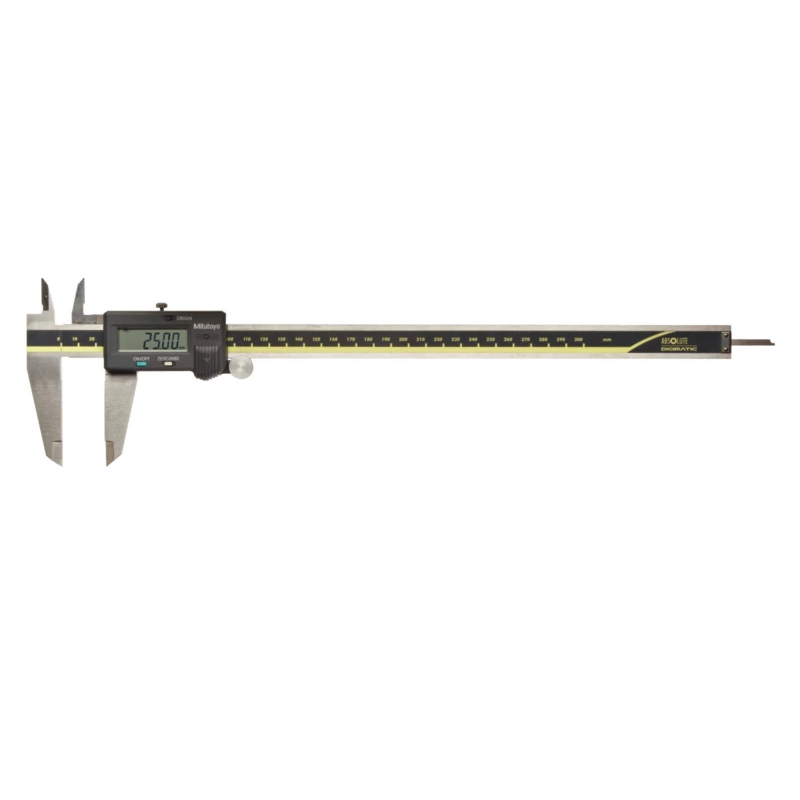

Digimatic ABSOLUTE AOS caliper Mitutoyo 500-153-30, measuring range 0-300 mm, flat depth rod, with thumb roller, with data output
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo
Digimatic ABSOLUTE AOS caliper Mitutoyo 500-153-30, measuring range 0-300 mm, flat depth rod, with thumb roller, with data output. Fitted with the new AOS (Advance Onsite Sensor) inductive encoder already used on the top-of-the-range waterproof calipers; Thanks to the ABS electromagnetic induction encoder, these calipers are not affected by oil or water on the surface of the scale; The ABS (ABSOLUTE) system removes the need to zero the instrument every time it is switched on.
Key features
- Fitted with the new AOS (Advance Onsite Sensor) inductive encoder already used on the top-of-the-range waterproof calipers
- Thanks to the ABS electromagnetic induction encoder, these calipers are not affected by oil or water on the surface of the scale
- The ABS (ABSOLUTE) system removes the need to zero the instrument every time it is switched on
- The high-quality surface finish ensures smooth, accurate sliding
- Character height 9 mm (150 and 200 mm), 11 mm (300 mm) for easy reading
- Long-life battery
Description
Mitutoyo Digimatic caliper made of hardened steel with jaws for inside and outside measurements. ABSOLUTE system, free from over-speed errors. Data output
Technical data
| Model | CD-30AX |
| Range | 0–300 mm |
| Depth rod | piatta |
| Fine-adjustment thumb roller | Yes |
| Data output | Yes |
| Maximum permissible error (MPE, full range) | ±0.03 mm |
| Max. permissible error S MPE | ±0.05 mm |
| Resolution | 0.01 mm |
| Max. response speed | Unlimited |
| Display | LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm) |
| ORIGIN | Yes |
| ON/OFF | Yes |
| ZERO / ABS | Yes |
| Low-voltage alarm | Yes |
| Battery life | Approx. 5 years under normal use |
| Mass | 350 g |
| L | 404 mm |
| A | 22 mm |
| B | 27.5 mm |
| C | 19.8 mm |
| D | 64 mm |
| H | 20 mm |
| Mitutoyo code | 500-153-30 |
Supplied with
box · SR44 battery · inspection certificate
Compatible accessories
- 264-620 – U-WAVE fit, IP67 model, wireless transmitter for caliper – Mitutoyo 264-620
- 264-621 – U-WAVE fit, tipo with buzzer, wireless transmitter for caliper – Mitutoyo 264-621
- 264-624 – U-WAVE fit Bluetooth, IP67 type, wireless transmitter for caliper – Mitutoyo 264-624
- 264-625 – U-WAVE fit Bluetooth, with buzzer, wireless transmitter for caliper – Mitutoyo 264-625
- 02AZF300 – Connection unit for standard caliper, standard type – Mitutoyo 02AZF300
- 050084-10 – Caliper support base, width 100 mm, for ranges 100, 150, 200 mm – Mitutoyo 050084-10
- 050085-10 – Caliper support base, width 125 mm, for range 300 mm – Mitutoyo 050085-10
Spare parts and consumables
- 63AAA800 – SR44 1.5 V battery Mitutoyo 63AAA800
- 050083-10 – Caliper support base, width 75 mm, for ranges 100, 150, 200 mm – Mitutoyo 050083-10
- 500-181-30 – ABSOLUTE AOS digital caliper without data output / Measuring range: 0- 150 mm
- 500-180-30 – Digimatic ABSOLUTE AOS caliper - without fine-adjustment thumb roller / Measuring range: 0 - 100 mm
- 500-201-30 – Digimatic ABSOLUTE AOS caliper - without fine-adjustment thumb roller / Measuring range: 0 - 100 mm
- 500-150-30 – Digimatic ABSOLUTE AOS caliper - with fine-adjustment thumb roller / Measuring range: 0 - 100 mm
- 500-184-30 – ABSOLUTE AOS digital caliper, round depth rod, without data output / Measuring range: 0 - 150 mm
- 500-161-30 – Digimatic ABSOLUTE AOS caliper with data output / Measuring range: 0 - 150 mm
- 500-203-30 – Digimatic ABSOLUTE AOS caliper - without fine-adjustment thumb roller / Measuring range: 0 - 150 mm
- 500-151-30 – Digimatic ABSOLUTE AOS caliper - with fine-adjustment thumb roller / Measuring range: 0 - 150 mm
- 500-158-30 – Digimatic ABSOLUTE AOS caliper - with fine-adjustment thumb roller / Measuring range: 0 - 150 mm
- 500-182-30 – Digimatic ABSOLUTE AOS caliper without data output / Measuring range: 0 - 200 mm
- 500-162-30 – Digimatic ABSOLUTE AOS caliper with data output / Measuring range: 0 - 200 mm
- 500-152-30 – Digimatic ABSOLUTE AOS caliper - with fine-adjustment thumb roller / Measuring range: 0 - 200 mm
- 500-205-30 – Digimatic ABSOLUTE AOS caliper Mitutoyo 500-205-30, measuring range 0-300 mm, flat depth rod, with data output
- 500-153-30 – Digimatic ABSOLUTE AOS caliper Mitutoyo 500-153-30, measuring range 0-300 mm, flat depth rod, with thumb roller, with data output
Documentation
- Brochure: prit 1409 absolute aos digimatic caliper
- Brochure: prit 1563 digimatic calipers it
- Document: 10-97-14-catalog extract-calibri digimatic absolute aos cat2627 p
Price and availability
Models without a displayed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.
Selection guide: Digimatic ABSOLUTE AOS calipers
Digimatic ABSOLUTE AOS caliper Mitutoyo 500-153-30, measuring range 0-300 mm, flat depth rod, with thumb roller, with data output. Fitted with the new AOS (Advance Onsite Sensor) induction encoder already used on the top-of-the-range waterproof calipers; thanks to the ABS electromagnetic induction encoder, these calipers are unaffected by oil or water on the scale surface; the ABSOLUTE (ABS) system removes the need to zero the instrument every time it is switched on.
Choose the caliper according to measuring range (0–300 mm), environment (IP67 for coolants and dust; standard AOS for the workshop and metrology room; carbon fibre for large ranges and light weight) and jaw shape (standard; knife-edge for grooves and small holes; carbide-tipped for abrasive surfaces; extra-long for deep parts). Models "with data output" allow measurements to be transferred to a PC or tablet using Digimatic or U-WAVE cables.
If in doubt, contact us: our technical support will recommend the model, measuring range and accessories best suited to your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.
Calibration and repair
The instrument is supplied with a Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the zero with the jaws closed and make sure there is no play in the slider; clean the beam and the jaws after use with coolants.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us with the model and serial number.
