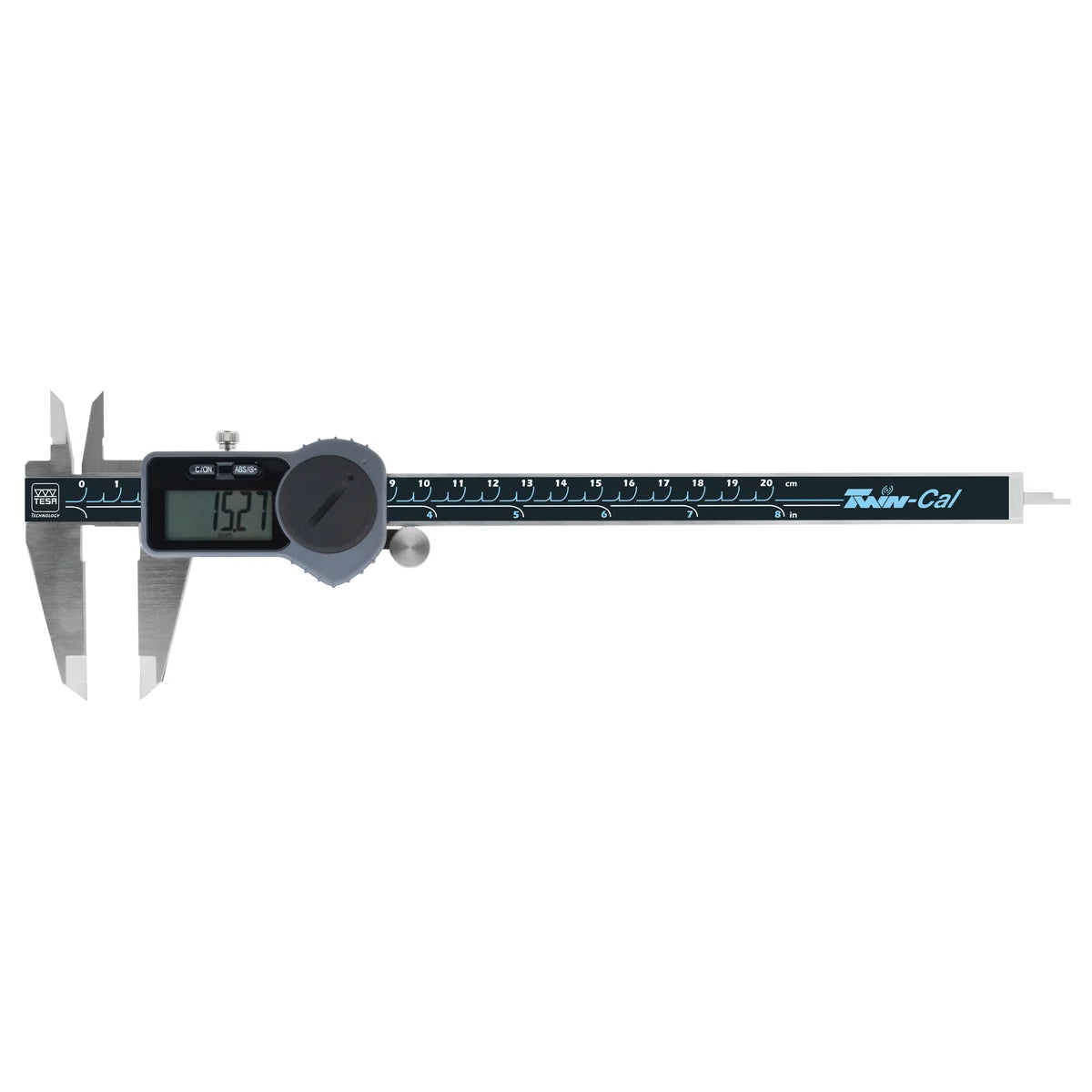

TWIN-CAL IP40 200 mm flat depth rod – TESA 00530095
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo
TESA universal digital caliper, measuring range 0 ÷ 200 mm / 0 ÷ 8 in, resolution 0.01 mm, TLC data output.
Key features
- Smooth, even slider movement
- Large, high-contrast LCD display
- Resolution 0.01 mm / .0005 in
- Battery life 12,000 hours
Description
TESA – universal digital caliper (TWIN-CAL IP67 models with SoftTouch rubber). Perfect slider guidance for smooth, even movement; Robust construction ensuring long service life and stable results over time; High level of protection against liquids and dust (even with the data transmitter attached); Easy reading thanks to the large, high-contrast display; Long battery life to avoid frequent replacement; Values sent to a PC via the TLC port (wired or wireless).
Technical data
| Standard ISO 13385-1 | 2019 |
| Maximum permissible errors 0 < L ≤ 100 mm | ± 20 µm |
| 100 < L ≤ 300 mm | ± 30 µm |
| TESA code | 00530095 |
Supplied with
Caliper · Battery (1x) · Inspection report · Declaration of conformity
Documentation
- Brochure: brochure calipers it
- Brochure: flyer universal digital sliding calipers
- Document: 11-97-59-catalog extract-digital universal models cat calipers
- User manual: manuel utilisateur twin cal ip67 twin ca
Price and availability
Models shown without a price are supplied in a configuration defined together with our technical support: contact us for a quote stating the application and measuring range.
Selection guide: TWIN-CAL IP40 universal
TESA universal digital caliper, measuring range 0 ÷ 200 mm / 0 ÷ 8 in, resolution 0.01 mm, TLC data output.
Choose the caliper according to the measuring range (150, 200 or 300 mm), environment (IP67 for coolants and dust; standard AOS for the workshop and metrology room; carbon fibre for large ranges and light weight) and the jaw shape (standard; knife-edge for grooves and small holes; carbide-tipped for abrasive surfaces; extra-long for deep parts). Models "with data output" let you transfer measurements to a PC or tablet using TESA cables or TESA Wireless.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
TESA instruments with data output transfer measurements using the TESA protocol: by cable with data button to a TLC/USB cable (the PC receives them as keyboard input, directly in Excel or in SPC software), or wirelessly with the TESA Wireless transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the zero with the jaws closed and that the slider has no play; clean the beam and jaws after use with coolants.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
