TWIN-CAL 150 flat depth rod + TLC-BLE – TESA 00511020
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo

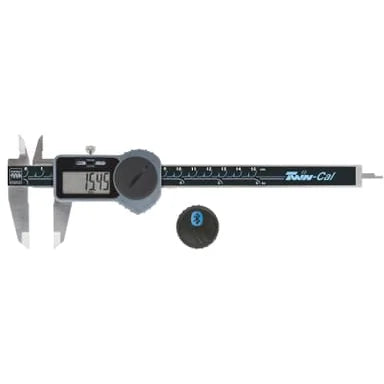

TESA Data-Pack, universal digital caliper, 150 mm, TWIN-CAL, flat depth rod, without thumb roller + TLC-BLE Bluetooth® transmitter – measuring range 0 ÷ 150 mm; resolution 0.01 mm.
Key features
- Measuring range: 0 ÷ 150 mm
- Resolution: 0.01 mm
- IP protection rating: IP40
- Data output: TLC
- Mass: 159 g
- Thumb roller: Without
- Depth rod: Flat
Description

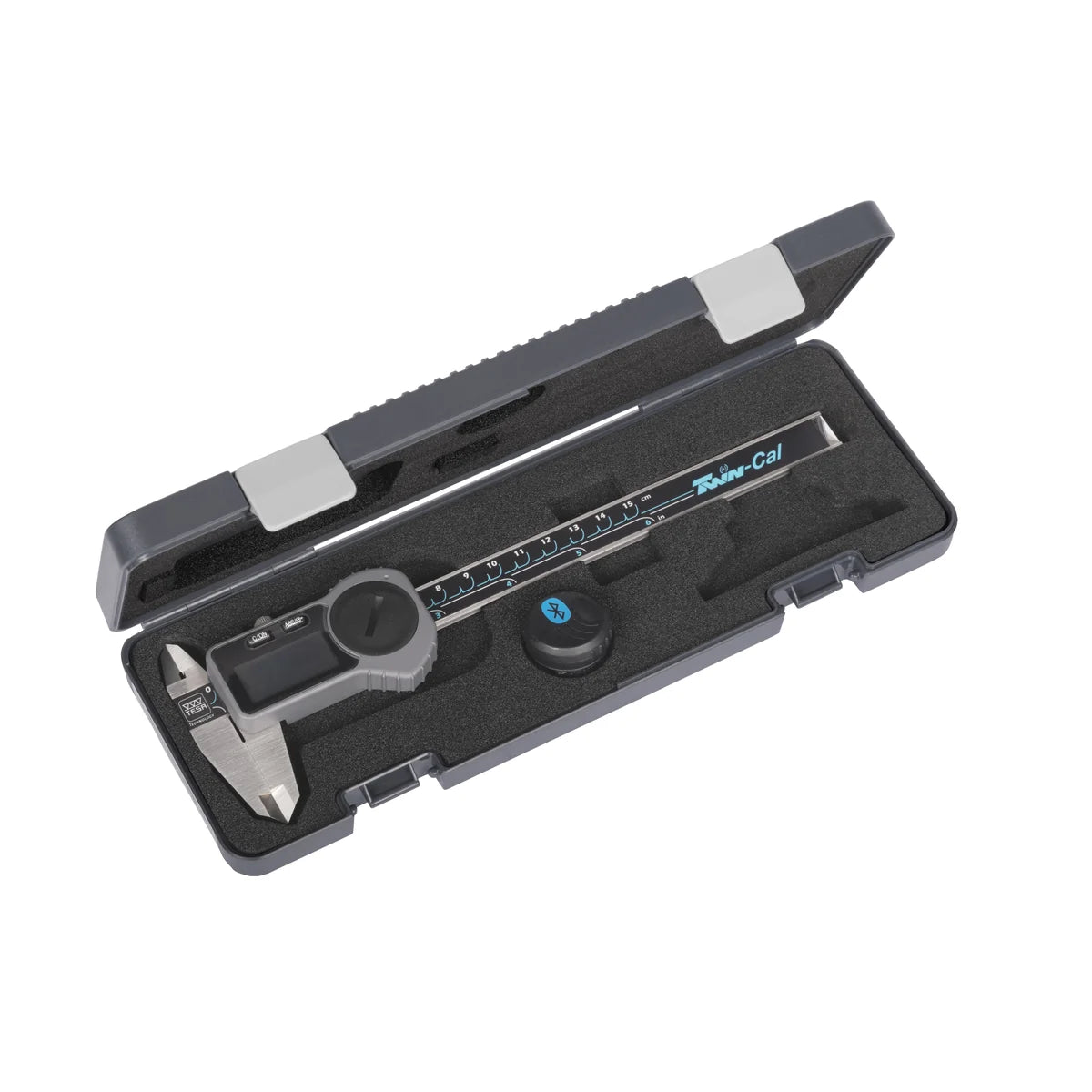

TESA Data-Pack, universal digital caliper, 150 mm, TWIN-CAL, flat depth rod, without thumb roller + TLC-BLE Bluetooth® transmitter, manufactured by TESA Technology (Switzerland).
Technical data
| Measuring range [mm]: 0 ÷ 150 | |
| Resolution [mm] | 0.01 |
| Maximum permissible errors [µm] | L = length in mm 0 < L ≤ 100 : ± 20 100 < L ≤ 150: ± 30 |
| IP protection rating | IP40 |
| Data output | TLC |
| Mass [g] | 159 |
| Thumb roller | Without |
| Depth rod | Flat |
| Dimension A [mm] | 40 |
| Dimension B [mm] | 16 |
| Dimension C [mm] | 1.3 x 1.8 |
| Dimension D [mm] | 3.2 |
| Dimension E [mm] | 15.5 |
| Consists of | 00530097 Universal digital caliper, 150 mm, TWIN-CAL, flat depth rod, without thumb roller 04760184 TLC-BLE Bluetooth® transmitter |
| Series | TWIN-CAL |
| TESA code | 00511020 |
Documentation
- Brochure: brochure calipers it
- Brochure: flyer universal digital sliding calipers
- User manual: manuel utilisateur twin cal ip67 twin ca
- User manual: user manual twin cal ip67 workshop or de
Price and availability
Models shown without a price are supplied in a configuration defined together with our technical support: contact us for a quote stating the application and measuring range.
Selection guide: Sets and kits
TESA Data-Pack, universal digital caliper, 150 mm, TWIN-CAL, flat depth rod, without thumb roller + TLC-BLE Bluetooth® transmitter – measuring range 0 ÷ 150 mm; resolution 0.01 mm.
Choose the caliper according to the measuring range (150, 200 or 300 mm), environment (IP67 for coolants and dust; standard AOS for the workshop and metrology room; carbon fibre for large ranges and light weight) and the jaw shape (standard; knife-edge for grooves and small holes; carbide-tipped for abrasive surfaces; extra-long for deep parts). Models "with data output" let you transfer measurements to a PC or tablet using TESA cables or TESA Wireless.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
TESA instruments with data output transfer measurements using the TESA protocol: by cable with data button to a TLC/USB cable (the PC receives them as keyboard input, directly in Excel or in SPC software), or wirelessly with the TESA Wireless transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the zero with the jaws closed and that the slider has no play; clean the beam and jaws after use with coolants.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
