Micrometer holder 16 mm – TESA 00160201
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo

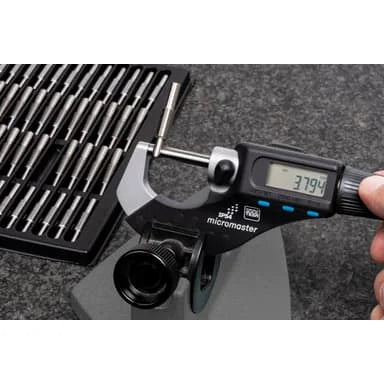

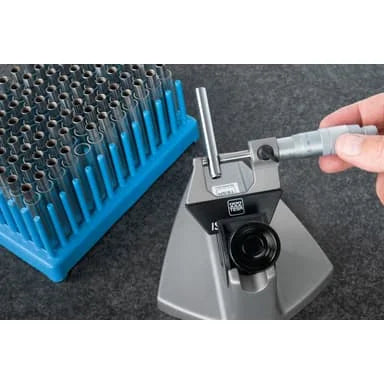

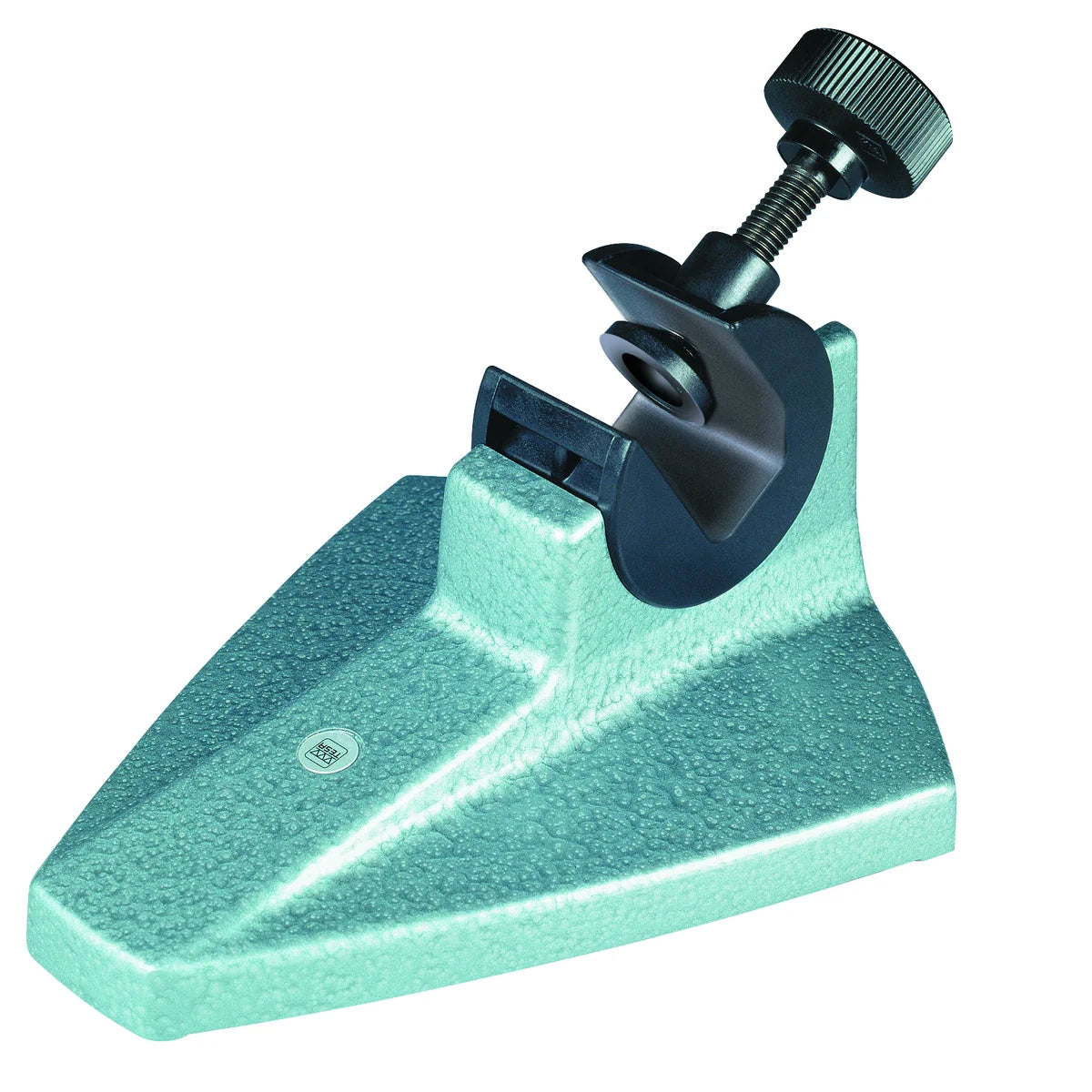

TESA micrometer holder with 16 mm opening, for outside micrometers up to 300 mm and other instruments.
Description
Micrometer holder with 16 mm opening, for outside micrometers up to 300 mm and other instruments.
Compatible with
- 06030010 – MICROMASTER Easy 0-30 mm
- 06030020 – MICROMASTER IP54 0-30 mm
- 06030021 – MICROMASTER IP54 25-50 mm
- 06030022 – MICROMASTER IP54 50-75 mm
- 06030023 – MICROMASTER IP54 75-100 mm
- 06030030 – MICROMASTER RS IP54 0-30 mm
- 06030031 – MICROMASTER RS IP54 25-50 mm
- 06030032 – MICROMASTER RS IP54 50-75 mm
- 06030033 – MICROMASTER RS IP54 75-100 mm
- 06030034 – MICROMASTER fine contacts 0-30 mm
Documentation
- Document: 11-96-49-catalog extract-metric vernier models cat micrometers e
- Document: 11-96-49-catalog extract-digital models cat outside micrometers
- Document: 11-96-49-catalog extract-digital model with fine contacts cat m
- Document: 11-96-49-catalog extract-optical flats micrometer stands
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.
Selection guide: Accessories
TESA micrometer stand with 16 mm opening, for outside micrometers up to 300 mm and other instruments.
Choose the micrometer according to the range (0-25, 25-50 mm …) and the contact type: flat anvils for shafts and plates, blade anvils for grooves and slots, pointed or disc anvils for threads and gears, interchangeable anvils for wide ranges. The IP65 protection rating allows use on the machine with coolant; the ratchet stop ensures a constant measuring force. Models "with data output" connect to a PC or to TESA Wireless.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
This model is without data output: readings are taken on the display. If you need to record measurements on a PC, choose the "with data output" version of the same series, which can be connected via a TESA cable or TESA Wireless.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Check the zero (or use the setting standard supplied for ranges above 25 mm) and the parallelism of the anvils with optical flats; always use the ratchet stop for a constant measuring force.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
