Micrometer stand – measuring range 0–100 mm - Adjustable tilt – Mitutoyo 156-101-10
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo

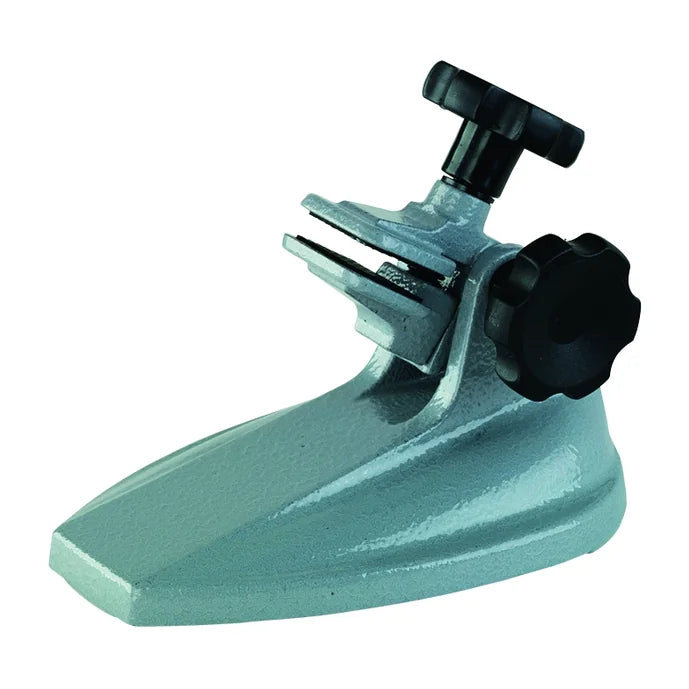

Micrometer stand / Measuring range: 0 - 100 mm - Adjustable tilt. Accessory listed in the Mitutoyo catalogue for: Single Holtest Digimatic, metric, Digimatic IP65 QuantuMike micrometers, Sheet-metal micrometers with dial indicator, Thread micrometers, Holtest Digimatic set with interchangeable heads, Complete Digimatic Holtest set.
Description
These Mitutoyo stands are designed to allow the use of micrometers or other instruments with frames suitable for clamping.
Technical data
| Applicable measuring range | 0 - 100 mm |
| Notes | Adjustable tilt |
| Mass | 1210 g |
| Mitutoyo code | 156-101-10 |
Supplied with
in a cardboard box
Compatible with
- 468-971 – Holtest Digimatic set with interchangeable heads Mitutoyo 468-971, measuring range 6-12 mm, IP65
- 468-972 – Holtest Digimatic set with interchangeable heads Mitutoyo 468-972, measuring range 12-20 mm, IP65
- 468-973 – Holtest Digimatic set with interchangeable heads Mitutoyo 468-973, measuring range 20-50 mm, IP65
- 468-974 – Holtest Digimatic set with interchangeable heads Mitutoyo 468-974, measuring range 50-100 mm, IP65
- 468-975 – Holtest Digimatic set with interchangeable heads Mitutoyo 468-975, measuring range 100-200 mm, IP65
- 468-981 – Complete Digimatic Holtest set Mitutoyo 468-981, measuring range 6-12 mm, IP65
- 468-982 – Complete Digimatic Holtest set Mitutoyo 468-982, measuring range 12-25 mm, IP65
- 468-983 – Complete Digimatic Holtest set Mitutoyo 468-983, measuring range 25-50 mm, IP65
- 468-984 – Complete Digimatic Holtest set Mitutoyo 468-984, measuring range 50-75 mm, IP65
- 468-985 – Complete Digimatic Holtest set Mitutoyo 468-985, measuring range 75-100 mm, IP65
- 468-161 – Three-point inside micrometer / Measuring range: 6 - 8 mm
- 468-162 – Three-point inside micrometer / Measuring range: 8 - 10 mm
- 468-163 – Three-point inside micrometer / Measuring range: 10 - 12 mm
- 468-164 – Three-point inside micrometer / Measuring range: 12 - 16 mm
- 468-165 – Three-point inside micrometer / Measuring range: 16 - 20 mm
- 468-166 – Three-point inside micrometer / Measuring range: 20 - 25 mm
- 468-167 – Three-point inside micrometer / Measuring range: 25 - 30 mm
- 468-168 – Three-point inside micrometer / Measuring range: 30 - 40 mm
- 468-169 – Three-point inside micrometer / Measuring range: 40 - 50 mm
- 468-170 – Three-point inside micrometer / Measuring range: 50 - 63 mm
- 468-171 – Three-point inside micrometer / Measuring range: 62 - 75 mm
- 468-172 – Three-point inside micrometer / Measuring range: 75 - 88 mm
- 468-173 – Three-point inside micrometer / Measuring range: 87 - 100 mm
- 468-174 – Three-point inside micrometer / Measuring range: 100 - 125 mm
- 468-175 – Three-point inside micrometer / Measuring range: 125 - 150 mm
- 468-176 – Three-point inside micrometer / Measuring range: 150 - 175 mm
- 468-177 – Three-point inside micrometer / Measuring range: 175 - 200 mm
- 468-178 – Three-point inside micrometer / Measuring range: 200 - 225 mm
- 468-179 – Three-point inside micrometer / Measuring range: 225 - 250 mm
- 468-180 – Three-point inside micrometer / Measuring range: 250 - 275 mm
- 468-181 – Three-point inside micrometer / Measuring range: 275 - 300 mm
Documentation
- Brochure: prit 1491 digimatic micrometer it
- Document: 15-02-10-catalog extract-supporti per micrometri cat2627 p103
- Document: 15-02-10-catalog extract-micrometri digimatic ip65 quantumike cat
- Document: 15-02-10-catalog extract-micrometri per fogli metallici con indic
Price and availability
Models without a displayed price are offered with a configuration defined together with our technical support:contact us for a quote stating your application and measuring range.
Selection guide: Accessories
Micrometer stand / Measuring range: 0 - 100 mm - adjustable inclination. Accessory listed in the Mitutoyo catalogue for: Single Holtest Digimatic, metric, Digimatic IP65 QuantuMike micrometers, Sheet-metal micrometers with graduated indicator, Thread micrometers, Holtest Digimatic sets with interchangeable heads, Complete Digimatic Holtest sets.
Choose the micrometer according to measuring range (0 - 100 mm) and contact type: flat anvils for shafts and plates, blade anvils for grooves and slots, pointed or disc anvils for threads and gears, interchangeable anvils for wide ranges. The IP65 protection rating allows use on the machine with coolant; the ratchet friction ensures constant measuring force. Models "with data output" connect to a PC or U-WAVE.
If in doubt, contact us: our technical support will recommend the model, measuring range and accessories suited to your application.
Integration and programming
This model is without data output: the reading is taken from the display. If you need to record measurements on a PC, choose the "with data output" version of the same series, which can be connected via Digimatic cable or U-WAVE.
For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.
Calibration and repair
The instrument is supplied with Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER manages it through accredited laboratories. Check the zero (using the supplied setting standard for ranges above 25 mm) and the parallelism of the anvils with optical flats; always use the ratchet stop for a constant measuring force.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us, stating the model and serial number.
