ST-320BL-2-EU UV Light LED Stroboscope

Accessories available

Accessories for this product

Informazioni di prodotto e di utilizzo

Product details Product details

Help in choosing Help in choosing

Integration and programming Integration and programming

Calibration and repair Calibration and repair

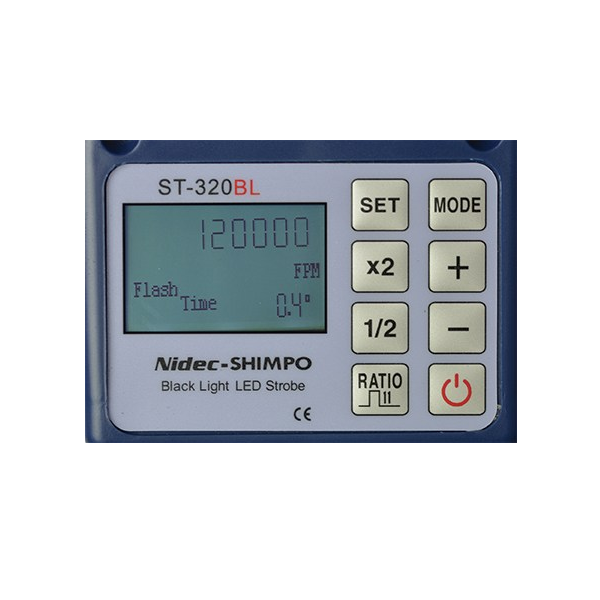

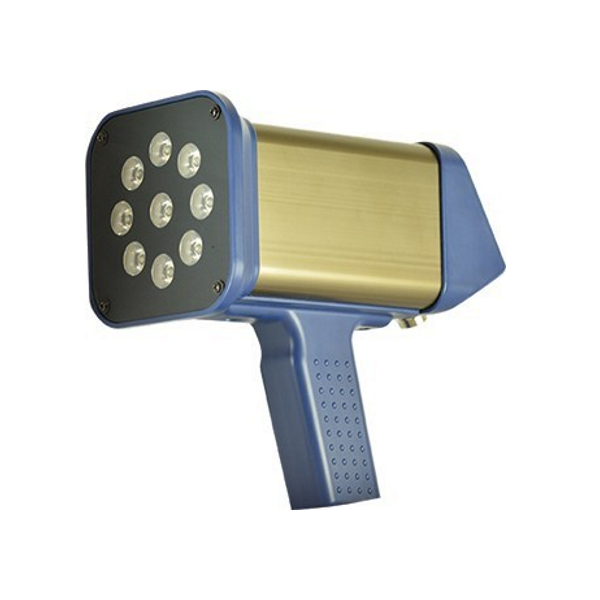

Utilizing super bright high-powered black light LED lamps, these stroboscopes are perfect for UV ink printing applications. The ST-320BL’s LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon lit stroboscopes. Operation is simple with the 8 button keypad and quick rate adjustment dial, combined with large, backlit LCD display. Phase shift, flash duration, plus flash rate are all quickly adjustable. The unit can work off user adjusted flash frequency or from a remote sensor’s signal which will automatically adjust to corresponding process fluctuations.

The ST-320BL is designed for speed and frequency measurements in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical and medical industries in various applications.

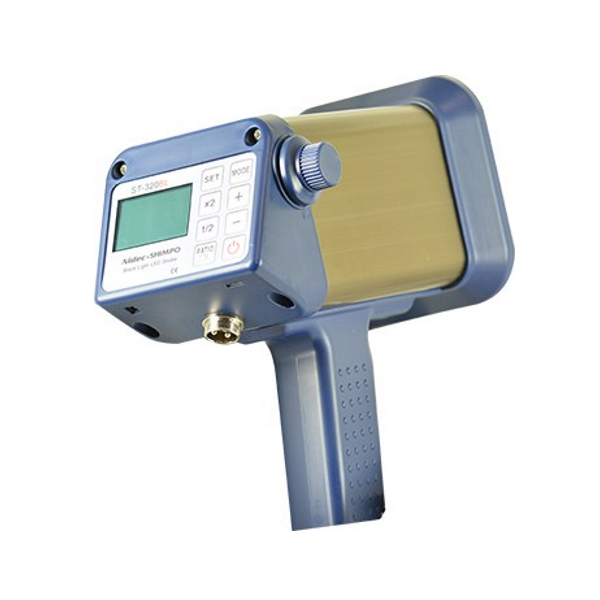

Features

Wide Flash Range 60 – 120,000 Flashes/min. (1-2000 Hz) can be adjusted to meet almost any high-speed application
Long-life Black Light LED operation for UV ink applications
Adjustable Flash Pulse duration achieves sharper images for detailed inspection
Phase Shift Advances or retards flash timing for viewing gear teeth, cutting surfaces, repeats or “drifting” images
Input sensor trigger function allows process machinery to control flash rate
Delay time adjustment combined with leading or trailing edge activation simplifies process set-up when using external signal input
x2 and 1/2 keys for large adjustment rate change or +/- for fine tuning

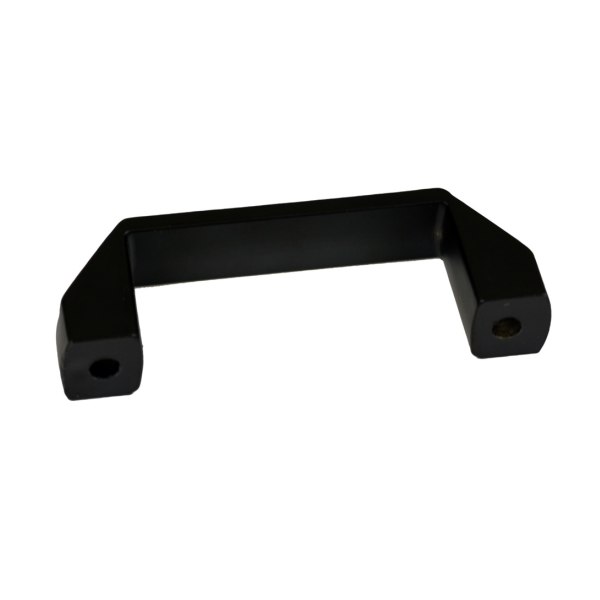

1/4-20 UNC connection for permanent mount applications (remove trigger handle)

Datasheet

User guide

INNOVACHECK can provide technical support in choosing the right product for the application to be addressed. You can send an email and our support can give you information or suggestions.

INNOVACHECK is not just an online shop. We work closely with integration and customization companies that can offer a 360° service, both in programming and product integration.

A repair service is available on all the products offered. A calibration service and test report issuing service is available on the metrology products.
