Portable LED stroboscope Shimpo ST-5100 with automatic speed-sensing laser
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo
Portable 21-LED CREE stroboscope Shimpo ST-5100 with a speed-sensing laser that automatically sets the flash frequency, trigger activation, lithium battery (approx. 5 hours), 30–120,000 FPM.
Models in the series
| ST-5100 | Portable 21-LED CREE stroboscope Shimpo ST-5100 with a speed-sensing laser that automatically sets the flash frequency, trigger activation, lithium battery (approx. 5 hours), 30–120,000 FPM. |
Description

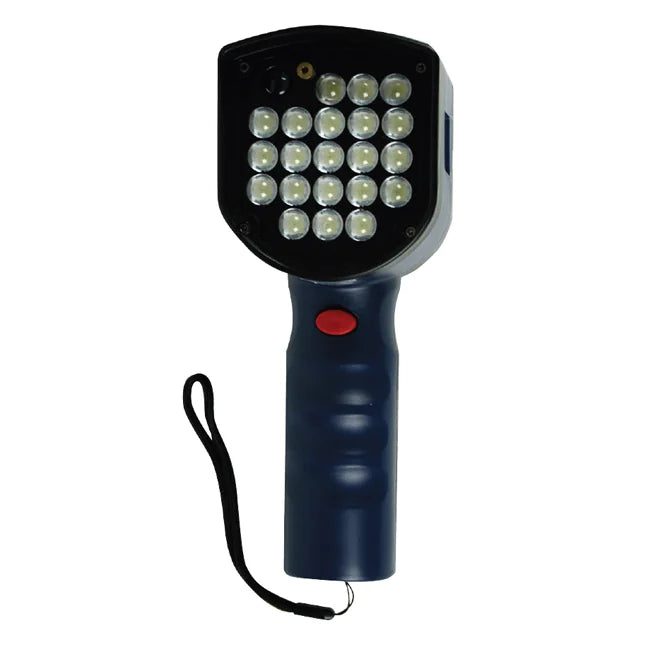

The ST-5100 is a lightweight portable stroboscope with trigger activation and 21 high-power CREE LEDs. Its exclusive feature is the speed-sensing laser, which transfers the detected speed directly to the flash frequency, simplifying use. The rechargeable lithium battery lasts up to 5 hours. The LED array provides bright, stable stroboscopic light over a wide measuring range, with a far longer life than xenon stroboscopes. It is designed for speed and frequency measurement in motion and vibration analysis and is suited to predictive and preventive maintenance: motors, shafts, gravure printing, extruders, blow moulding, wire marking, engraving, water jets, fans, cams, gears, belts, injectors, vibration analysis, spindles, blade timing and sharpening, in the printing, packaging, textile, automotive, cable, mining, steel, chemical, optical, medical and marine sectors. Adjustment with x2/÷2 and +/- keys, backlit LCD display, large handle, activation from an external sensor with the supplied cable.
Range 30–120,000 FPM (0.5–2000 Hz), accuracy 0.01% ±1 digit F.S. at 25 °C. Illuminance at 6000 FPM and brightness 85: 9500 lx at 20 cm (diameter 178 mm), 2275 lx at 50 cm (279 mm); at 1500 FPM: 4250 lx at 20 cm, 1375 lx at 50 cm. LED life approx. 3–5 years. Backlit LCD display, resolution 0.1 FPM and 0.1 Hz. Flash duration 0.1–2.5° (1–100 on the display). Lithium battery 12.6 V DC 2600 mAh, battery life approx. 5 hours; adapter 100–240 V AC. External sensor input 12 V pulse, sensor supply 12 V DC up to 200 mA, pulse >50 µs. Temperature 0–35 °C, humidity 35–85% RH. ABS housing, 228 x 86 x 40 mm, weight 280 g. CE marking, RoHS. 1-year warranty.
Typical applications
- Speed and frequency measurement in motion and vibration analysis
- Predictive and preventive maintenance of motors, shafts, gears, fans and belts
- Gravure printing, packaging, textiles, automotive, cables, steel
Supplied with
AC adapter · Carrying case · Sensor input cable
Documentation
- Document: st4 family declaration of conformity
- User manual: st5100 stroboscope product manual
- Document: 12-14-04-original image-st5100 stroboscope product catalogue
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support team: contact us for a quote stating your application and measuring range.
Selection guide: ST-5100
Shimpo ST-5100 portable stroboscope with 21 CREE LEDs and a speed-sensing laser that automatically sets the flash frequency, trigger activation, lithium battery (approx. 5 hours), 30–120,000 FPM.
Available models: ST-5100.
Guide to the series: portable LED stroboscopes (DT-326B, DT-362, DT-366, ST-1100, ST-4000, ST-5100) are the choice for maintenance and inspection of moving parts, with a rechargeable battery and long LED life; xenon models (DT-311D, DT-3011N, DT-3015N, DT-735) offer the highest light intensity for brightly lit environments; NEMA 4X/IP65 versions (DT-3011J) are for humid and dusty environments; fixed ST-328 (xenon) and ST-329 (LED) arrays illuminate the full width of printing, packaging and textile machines; BL (black light) versions are used to check inks and UV markings.
Typical applications:
- Speed and frequency measurements in motion and vibration analysis
- Predictive and preventive maintenance of motors, shafts, gears, fans and belts
- Gravure printing, packaging, textiles, automotive, cables, steel industry
If in doubt, contact us: our technical support will recommend the right model and capacity for your application.
Integration and programming
The flash rate is set from the keypad or with the knob and read on the display; models with an external trigger input synchronise with a sensor (photocell, proximity) to automatically "freeze" the motion at the real speed of the machine, with phase shift adjustment.
The ST-328/ST-329 bars are installed on the machine using the supplied brackets and controlled from the remote control unit; versions with 100-120 V or 220-240 V supply. For integration with encoders or machine signals, our technical team will support you in choosing cables, sensors and adapters.
Calibration and repair
Shimpo stroboscopes are calibrated at the factory and frequency accuracy is ensured by the quartz oscillator. On request we supply the frequency calibration certificate with traceability. Xenon lamps, batteries, cables and rubber guards are available as original spare parts.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate, periodic verification and repairs of Shimpo instruments in Italy. Contact us, stating the model and serial number.
