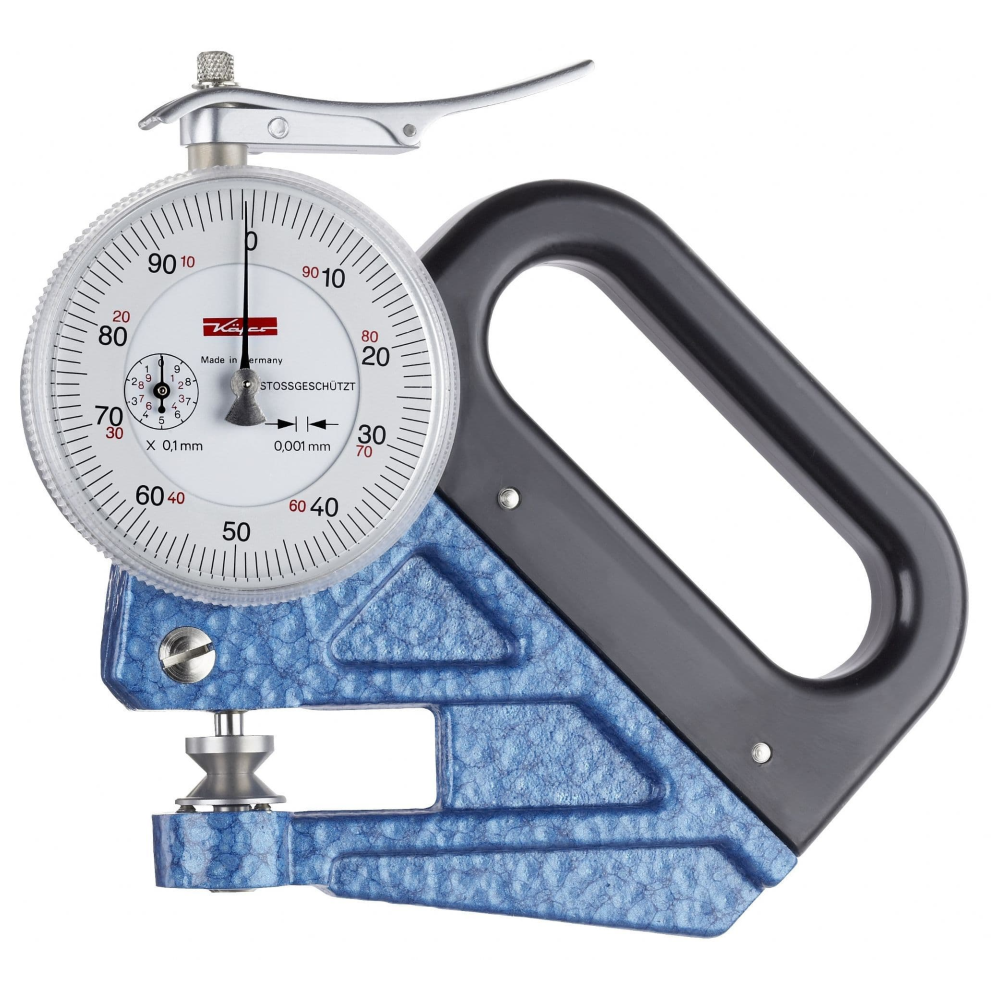

Foil Dial Thickness Gauge F 1101/30, 0 - 1 mm reading, 0.001 mm Kafer
Foil Dial Thickness Gauge F 1101/30, 0 - 1 mm reading, 0.001 mm Kafer
These handy instruments are used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge.
The contact force is approximately 1.5 N.
- Measuring range: 1 mm
- Analog instrument with 0.001 mm resolution
On request these instruments can be supplied at an extra charge with a lower contact force of 0.7 N.
Types of pressers available, make your selection in the table below:
Presser type standard, flat diameter 6.35 mm (F 1101/30 Standard)
Presser type flat diameter 10 mm (F 1101/30 Piatto)
Upper presser convex r 15 (F 1101/30 R 15)
Upper presser convex r 40 (F 1101/30 R 40)
Lower presser diameter 6.35 mm (F 1101/30 Inf. Piatto)
Lower presser convex r 15 (F 1101/30 R 15 Inf.)
