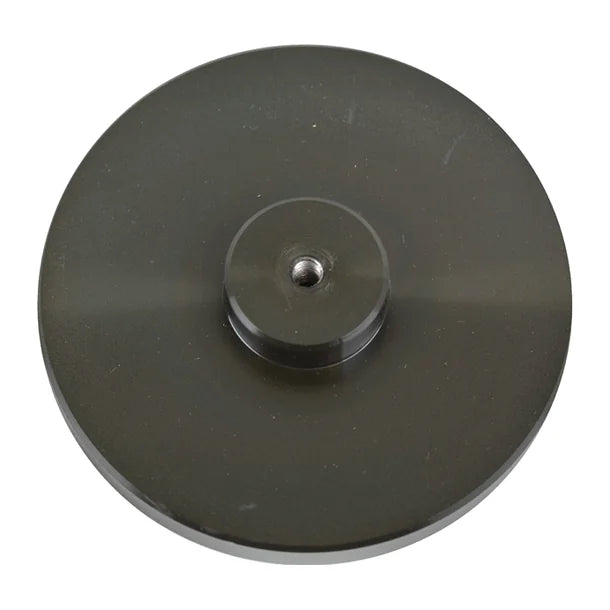

Universal mounting plate for force gauges on Shimpo test stands

Shimpo UNI-PLATE universal mounting plate for securing force gauges to test stands.

Compatible with

• FGS-100L – Manual lever test stand Shimpo FGS-100L, capacity 100 kg (200 lb)
• FGS-50S – Manual lever test stand Shimpo FGS-50S, capacity 22 kg (50 lb)
• MF-10 – Mechanical force gauge Shimpo MF-10 with peak function, capacity 10 lb
• MF-100 – Mechanical force gauge Shimpo MF-100 with peak function, capacity 100 lb
• MF-10KG – Mechanical force gauge Shimpo MF-10KG with peak function, capacity 10 kg
• MF-1KG – Mechanical force gauge Shimpo MF-1KG with peak function, capacity 1 kg
• MF-2 – Mechanical force gauge Shimpo MF-2 with peak function, capacity 2 lb
• MF-20 – Mechanical force gauge Shimpo MF-20 with peak function, capacity 20 lb
• MF-20KG – Mechanical force gauge Shimpo MF-20KG with peak function, capacity 20 kg
• MF-2KG – Mechanical force gauge Shimpo MF-2KG with peak function, capacity 2 kg
• MF-30 – Mechanical force gauge Shimpo MF-30 with peak function, capacity 30 lb
• MF-30KG – Mechanical force gauge Shimpo MF-30KG with peak function, capacity 30 kg
• MF-3KG – Mechanical force gauge Shimpo MF-3KG with peak function, capacity 3 kg
• MF-5 – Mechanical force gauge Shimpo MF-5 with peak function, capacity 5 lb
• MF-50 – Mechanical force gauge Shimpo MF-50 with peak function, capacity 50 lb
• MF-50KG – Mechanical force gauge Shimpo MF-50KG with peak function, capacity 50 kg
• MF-5KG – Mechanical force gauge Shimpo MF-5KG with peak function, capacity 5 kg

Documentation

• User manual: teststand manual cat24 rev1

Price and availability

Models without a listed price are offered in a configuration defined together with our technical support team: contact us for a quote stating your application and measuring range.
