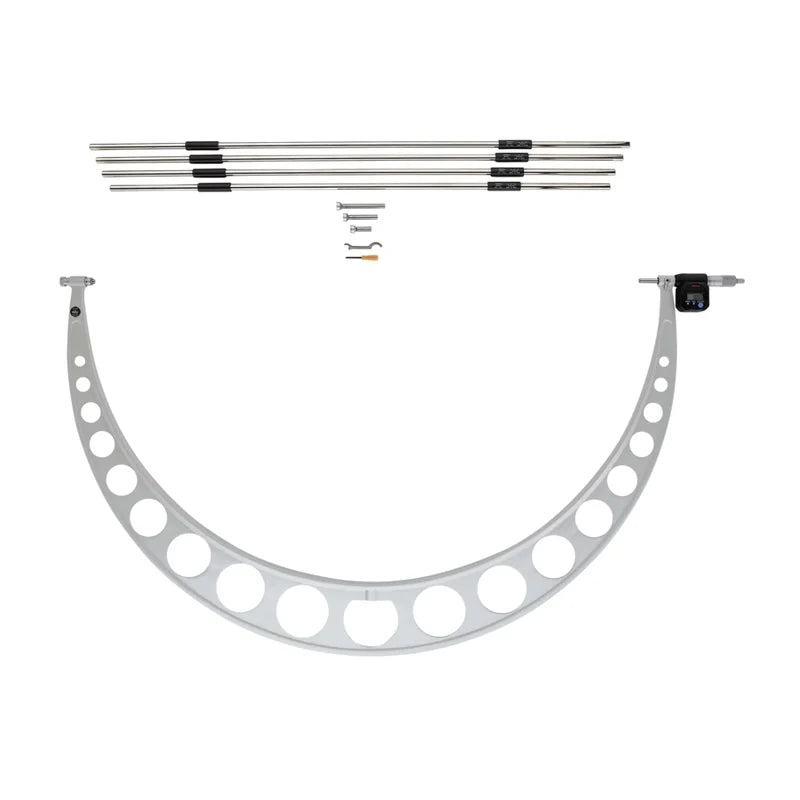

Digimatic outside micrometer with interchangeable anvils Mitutoyo 340-526, measuring range 900-1000 mm
This product is priced individually. Fill in the form to receive a dedicated quote.
Accessories available
Informazioni di prodotto e di utilizzo
Digimatic outside micrometer with interchangeable anvils Mitutoyo 340-526, measuring range 900-1000 mm. Friction-thimble model for constant measuring force; With interchangeable anvil to extend the measuring range up to 300 mm.
Key features
- Friction-thimble model for constant measuring force
- With interchangeable anvil to extend the measuring range
Description
Digimatic outside micrometer with interchangeable anvils
Technical data
| Digital / Analogue | Digital |
| Inch / Metric | Metric |
| Measuring range | 900–1.000 mm |
| Resolution | 0.001 mm |
| Maximum permissible error (MPE) (full range) | ±18 µm |
| Variation in length V MPE | 12 µm |
| Display | LCD, character height 7.5 mm |
| Measuring faces | Hardened and lapped anvil; spindle side carbide-tipped and lapped |
| Spindle | With spindle lock, ø6.35 mm (≤300 mm) ø8 mm (>300 mm), spindle pitch 0.5 mm |
| Scale | Matt chrome-plated thimble and sleeve, Ø 21 mm |
| Data output | Yes |
| Measuring force | 10 - 15 N |
| Power supply | SR-44 battery |
| Battery life | Approx. 2.4 years for models ≤300 mm, 1.8 years for >300 mm |
| Setting standard | 4 (900, 925, 950, 975 mm) |
| Interchangeable anvils | 4 |
| ZERO / ABS | Yes |
| Automatic power-off after 20 minutes of inactivity | Yes |
| Low-voltage alarm | Yes |
| Lock function | Yes |
| HOLD | Yes |
| 2 x PRESET | Yes |
| Mass | 10.9 kg |
| Mitutoyo code | 340-526 |
Supplied with
box · spanner · setting standards · 4 anvils · 2 SR44 batteries
Compatible accessories
- 05CZA662 – Digimatic cable with data button IP67, 1 m, micrometer type – Mitutoyo 05CZA662
- 05CZA663 – Digimatic cable with data button IP67, 2 m, micrometer type – Mitutoyo 05CZA663
- 06AFM380B – USB Input Tool Direct (Digimatic to USB), 2 m cable, Digimatic/Digimatic 2, with data button, IP micrometer type – Mitutoyo 06AFM380B
- 264-622 – U-WAVE fit, IP67, wireless transmitter for micrometer – Mitutoyo 264-622
- 264-623 – U-WAVE fit, buzzer type, wireless transmitter for micrometer – Mitutoyo 264-623
- 264-626 – U-WAVE fit Bluetooth, IP67 type, wireless transmitter for micrometer – Mitutoyo 264-626
- 264-627 – U-WAVE fit Bluetooth, buzzer type, wireless transmitter for micrometer – Mitutoyo 264-627
- 02AZF310 – Connection unit for IP caliper, micrometer, with data button for U-WAVE fit, U-WAVE fit Bluetooth – Mitutoyo 02AZF310
- 02AZD880G – U-WAVE-T, buzzer type, wireless transmitter – Mitutoyo 02AZD880G
- 02AZD730G – U-WAVE-T, with IP67, wireless transmitter – Mitutoyo 02AZD730G
Spare parts and consumables
- 63AAA800 – SR44 battery 1.5 V Mitutoyo 63AAA800
Documentation
- Brochure: prit 1491 digimatic micrometer it
- Document: 11-25-70-catalog extract-Digimatic outside micrometers with interchangeable anvils
Price and availability
Models without a displayed price are offered with a configuration defined together with our technical support team: contact us for a quote stating your application and measuring range.
Selection guide: Digimatic outside micrometers with interchangeable anvils
Digimatic outside micrometer with interchangeable anvils Mitutoyo 340-526, measuring range 900-1000 mm. Model with friction thimble for constant measuring force; interchangeable anvil extends the measuring range up to 300 mm.
Choose the micrometer according to measuring range (900–1,000 mm) and contact type: flat anvils for shafts and plates, blade anvils for grooves and slots, pointed or disc anvils for threads and gears, interchangeable anvils for wide ranges. The IP65 protection rating allows use on the machine with coolant; the ratchet friction ensures constant measuring force. Models "with data output" connect to a PC or U-WAVE.
If in doubt, contact us: our technical support will recommend the model, measuring range and accessories suited to your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.
Calibration and repair
The instrument is supplied with Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER manages it through accredited laboratories. Check the zero (using the supplied setting standard for ranges above 25 mm) and the parallelism of the anvils with optical flats; always use the ratchet stop for a constant measuring force.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us, stating the model and serial number.
