• MICROMASTER RS IP54 25–50 mm – TESA 06030031
MICROMASTER RS IP54 25–50 mm – TESA 06030031
MICROMASTER RS IP54 25–50 mm – TESA 06030031

MICROMASTER RS IP54 25–50 mm – TESA 06030031

Product available on request

This product is priced individually. Fill in the form to receive a dedicated quote.

You are requesting a quote for: MICROMASTER RS IP54 25–50 mm – TESA 06030031
SKU: 06030031
Manufacturer: TESA

Informazioni di prodotto e di utilizzo

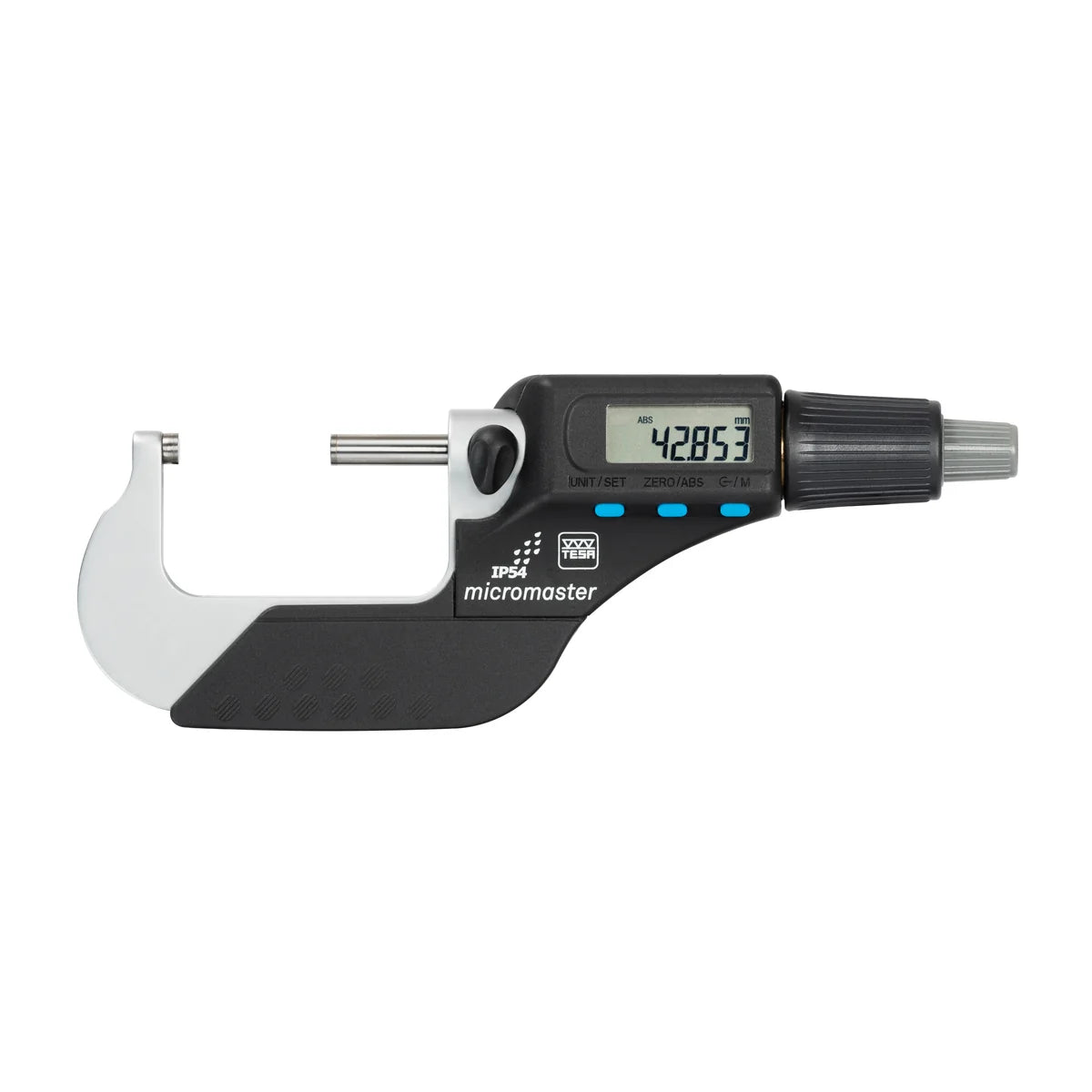

TESA MICROMASTER digital outside micrometer, range 25 ÷ 50 mm, resolution 0.001 mm, IP54, with Opto-RS232 data output.

Key features

  • Robust construction, high protection against liquids and dust
  • Large high-contrast LCD display
  • Long battery life
  • Carbide contacts

Description

TESA MICROMASTER digital outside micrometer with carbide contacts, a high-contrast LCD display and long battery life. Robust construction for long service life and stable results over time, with high protection against liquids and dust.

Supplied with

Micrometer · Battery (1x) · Inspection report · Declaration of conformity

Documentation

Price and availability

Models without a listed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.

Selection guide: MICROMASTER RS IP54

TESA digital outside micrometer MICROMASTER, measuring range 25 ÷ 50 mm, resolution 0.001 mm, IP54, with Opto-RS232 data output.

Choose the micrometer according to the range (0-25, 25-50 mm …) and the contact type: flat anvils for shafts and plates, blade anvils for grooves and slots, pointed or disc anvils for threads and gears, interchangeable anvils for wide ranges. The IP65 protection rating allows use on the machine with coolant; the ratchet stop ensures a constant measuring force. Models "with data output" connect to a PC or to TESA Wireless.

If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.

Integration and programming

TESA instruments with data output transfer measurements using the TESA protocol: by cable with data button to a TLC/USB cable (the PC receives them as keyboard input, directly in Excel or in SPC software), or wirelessly with the TESA Wireless transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.

For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.

Calibration and repair

The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Check the zero (or use the setting standard supplied for ranges above 25 mm) and the parallelism of the anvils with optical flats; always use the ratchet stop for a constant measuring force.

Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
