IMICRO digital 35–40 mm – TESA 06130114
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo

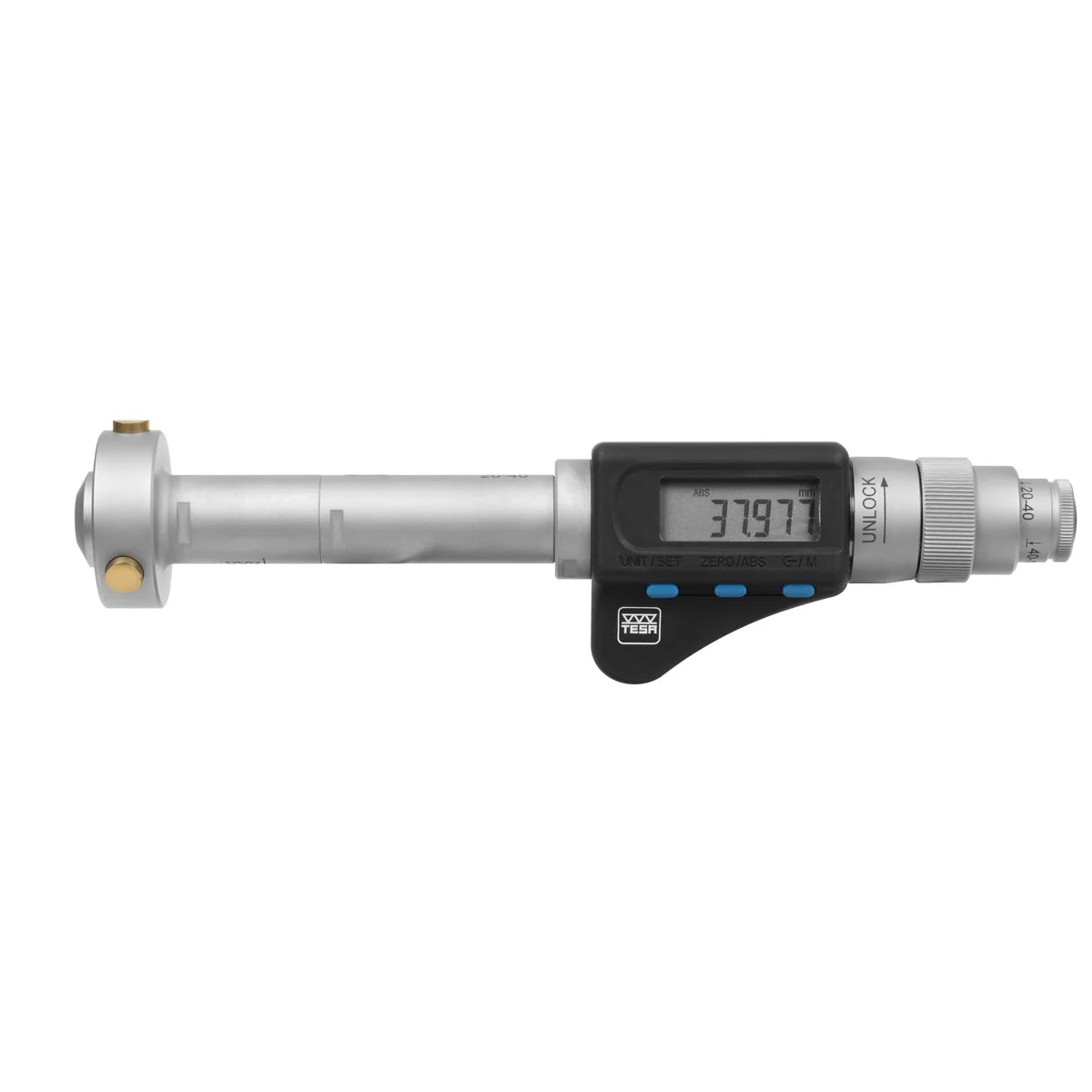

TESA IMICRO digital 3-contact inside micrometer, range 35 ÷ 40 mm, resolution 0.001 mm, Opto-RS232 output.
Key features
- 3 contact lines, Abbe principle
- Self-centring and self-aligning in the bore
- Constant measuring force
- Extensions for deep measurements
- Opto-RS232 data output
Description
TESA IMICRO digital 3-contact inside micrometer with a robust construction, measurements unaffected by temperature variations, a large high-contrast display and value transmission via the Opto-RS232 output (wired or wireless). The 3 measuring contacts, arranged at 120° on the head and held against the micrometric threaded cone, rest on the bore wall along three lines: the instrument centres and aligns itself, and the ratchet stop ensures a constant measuring force. Suitable for through-bore measurements; the extension system also allows measurements at great depth.
Supplied with
Micrometer · Battery (1x) · Inspection report · Declaration of conformity
Documentation
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.
Selection guide: IMICRO digital
TESA IMICRO digital 3-point inside micrometer, measuring range 35 ÷ 40 mm, resolution 0.001 mm, Opto-RS232 output.
Choose the micrometer according to the range (0-25, 25-50 mm …) and the contact type: flat anvils for shafts and plates, blade anvils for grooves and slots, pointed or disc anvils for threads and gears, interchangeable anvils for wide ranges. The IP65 protection rating allows use on the machine with coolant; the ratchet stop ensures a constant measuring force. Models "with data output" connect to a PC or to TESA Wireless.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
TESA instruments with data output transfer measurements using the TESA protocol: by cable with data button to a TLC/USB cable (the PC receives them as keyboard input, directly in Excel or in SPC software), or wirelessly with the TESA Wireless transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Check the zero (or use the setting standard supplied for ranges above 25 mm) and the parallelism of the anvils with optical flats; always use the ratchet stop for a constant measuring force.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
