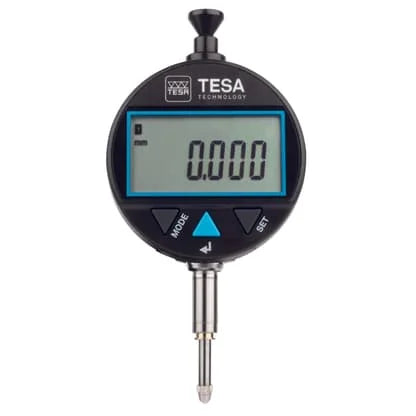

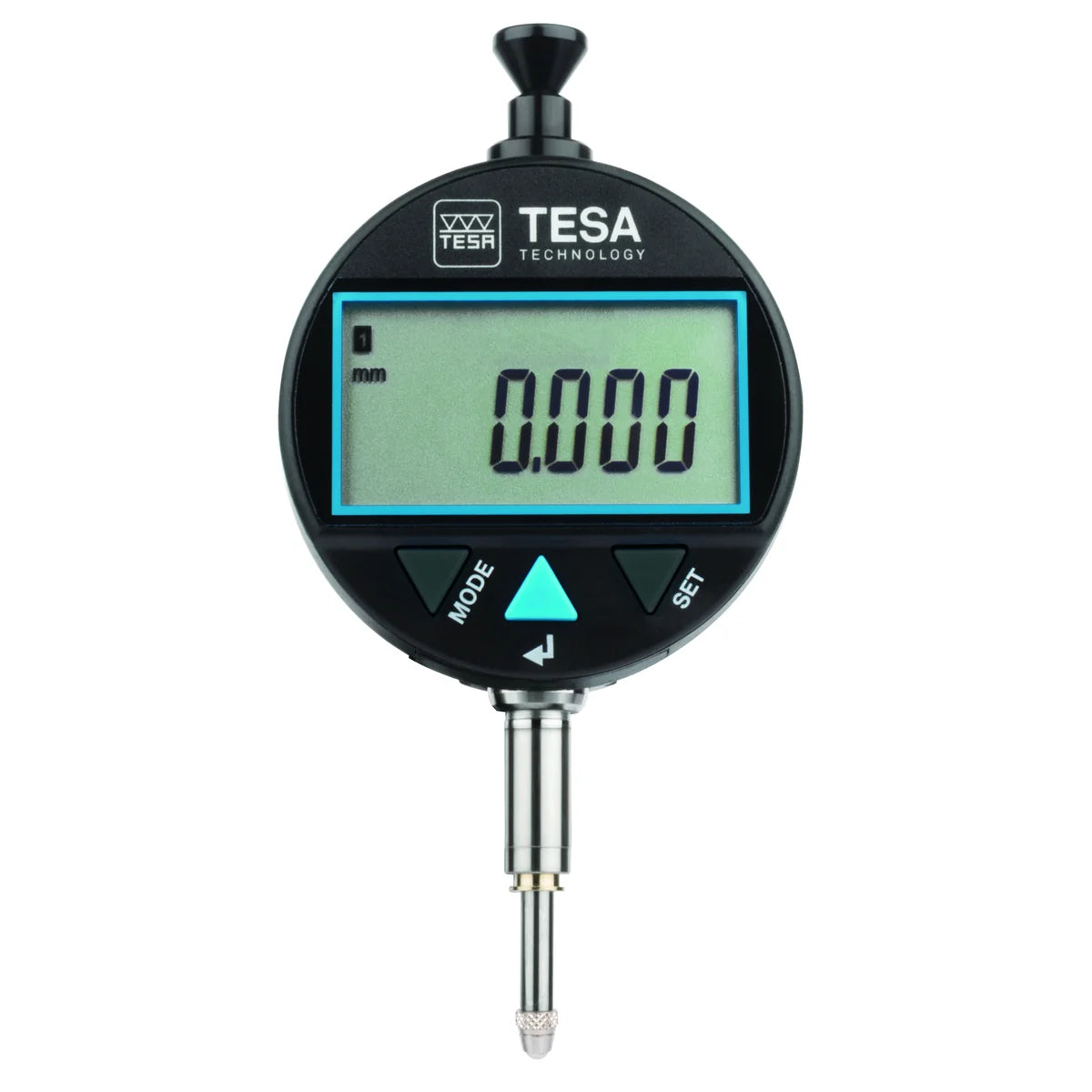

DIALTRONIC EASY 12.5 mm 0.001 – TESA 01930321
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo
TESA DIALTRONIC EASY digital indicator, 12.5 mm / .5 in, resolution 0.01 or 0.001 mm (depending on model), IP51, RS232 data output.
Key features
- Measuring range 12.5 mm
- Dial Ø 60 mm
- RS232 data output
- Measured value hold
Description
TESA – DIALTRONIC EASY series digital indicator. Zero setting / Preset; data transmission; mm / in selection; measuring direction selection; automatic or manual stand-by; measured value hold.
Technical data
| performance | manufacturer's standard |
| TESA code | 01930321 |
Supplied with
Indicator with Ø 3 mm ball contact point fitted · Quick start guide
Documentation
- Document: 12-01-33-catalog extract-digital indicators cat indicators it
- Document: 12-01-33-catalog extract-DIALTRONIC EASY series cat indicators it
- User manual: user manual dialtronic easy fr en it de
Price and availability
Models without a listed price are offered in a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.
Selection guide: DIALTRONIC EASY series
TESA digital indicator DIALTRONIC EASY, 12.5 mm / .5 in, resolution 0.01 or 0.001 mm (depending on model), IP51, RS232 data output.
Choose the indicator according to the travel (12.7 or 25.4 mm) and the resolution (0.01 or 0.001 mm): ID-S and ID-SX for routine inspection, ID-C for advanced functions (GO/NG tolerances, Max/Min/TIR, calculation), ID-F with a large backlit display, ID-H for high precision (0.0005 mm), ID-N/ID-B for compact applications. Check the back type (flat or lug) and the Ø8 mm stem for mounting on stands and fixtures.
If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.
Integration and programming
TESA instruments with data output transfer measurements using the TESA protocol: by cable with data button to a TLC/USB cable (the PC receives them as keyboard input, directly in Excel or in SPC software), or wirelessly with the TESA Wireless transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.
Calibration and repair
The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check that the stem moves freely and the repeatability on a gauge block; avoid impacts on the contact point.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
