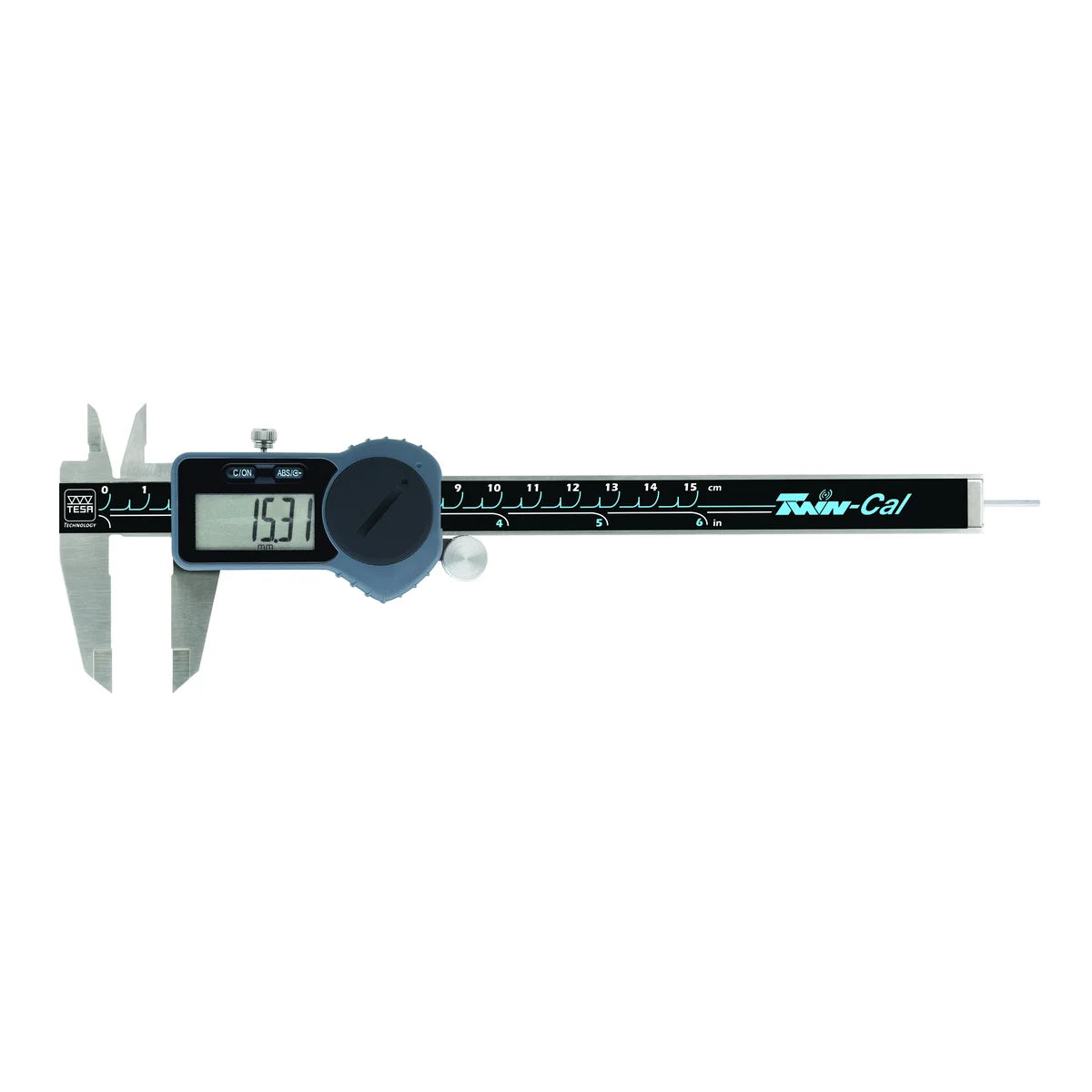

• Standard electronic caliper TESA TWIN-CAL IP40, measuring range 150 mm – TESA 00530094
Calibro elettronico standard TESA TWIN-CAL IP40, Corsa di misura: 150 mm – TESA 00530094
Calibro elettronico standard TESA TWIN-CAL IP40, Corsa di misura: 150 mm – TESA 00530094

Standard electronic caliper TESA TWIN-CAL IP40, measuring range 150 mm – TESA 00530094

Product available on request

This product is priced individually. Fill in the form to receive a dedicated quote.

You are requesting a quote for: Standard electronic caliper TESA TWIN-CAL IP40, measuring range 150 mm – TESA 00530094
SKU: 00530094
Manufacturer: TESA

Informazioni di prodotto e di utilizzo

Universal digital caliper TESA, range 0 ÷ 150 mm / 0 ÷ 6 in, resolution 0.01 mm, TLC data output.

Key features

  • Smooth, even slider movement
  • Large high-contrast LCD display
  • Resolution 0.01 mm / .0005 in
  • Battery life 12,000 hours

Description

TESA – universal digital caliper (TWIN-CAL IP67 models with SoftTouch rubber). Perfect slider guidance for smooth, even sliding; robust construction to ensure long life and stable results over time; high degree of protection against liquids and dust (even with the data transmitter connected); easy reading thanks to the large high-contrast display; long battery life to avoid overly frequent replacement; values can be sent to a PC via the TLC port (by cable or wireless).

Technical data

ISO 13385-1 standard 2019
Maximum permissible errors 0 < L ≤ 100 mm ± 20 µm
100 < L ≤ 300 mm ± 30 µm
TESA code 00530094

Supplied with

Caliper · Battery (1x) · Inspection report · Declaration of conformity

Documentation

Price and availability

Models without a listed price are offered in a configuration defined together with our technical support team: contact us for a quote stating your application and measuring range.

Selection guide: TWIN-CAL IP40 universal

TESA universal digital caliper, measuring range 0 ÷ 150 mm / 0 ÷ 6 in, resolution 0.01 mm, TLC data output.

Choose the caliper according to the measuring range (150, 200 or 300 mm), environment (IP67 for coolants and dust; standard AOS for the workshop and metrology room; carbon fibre for large ranges and light weight) and the jaw shape (standard; knife-edge for grooves and small holes; carbide-tipped for abrasive surfaces; extra-long for deep parts). Models "with data output" let you transfer measurements to a PC or tablet using TESA cables or TESA Wireless.

If in doubt, contact us: our technical support will recommend the right model, measuring range and accessories for your application.

Integration and programming

TESA instruments with data output transfer measurements using the TESA protocol: by cable with data button to a TLC/USB cable (the PC receives them as keyboard input, directly in Excel or in SPC software), or wirelessly with the TESA Wireless transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.

For integration into test stations, measuring fixtures or SPC software, our technical team will help you choose cables, receivers and software.

Calibration and repair

The instrument is supplied with a TESA inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the zero with the jaws closed and that the slider has no play; clean the beam and jaws after use with coolants.

Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate in Italy (including ACCREDIA through partner laboratories), periodic verification and repairs of TESA instruments. Contact us stating the model and serial number.
