Caliper with knife-edge blade jaws Mitutoyo 573-643-20, measuring range 10.1-200 mm, IP67

Product available on request

This product is priced individually. Fill in the form to receive a dedicated quote.

You are requesting a quote for: Caliper with knife-edge blade jaws Mitutoyo 573-643-20, measuring range 10.1-200 mm, IP67
SKU: 573-643-20
Manufacturer: MITUTOYO

Accessories available

USB Input Tool Direct (Digimatic a USB), Digimatic /2, con tasto dati, tipo calibro IP – Mitutoyo 06AFM380A
off
MITUTOYO
USB Input Tool Direct (Digimatic to USB), Dig...
Request a quote →

Informazioni di prodotto e di utilizzo

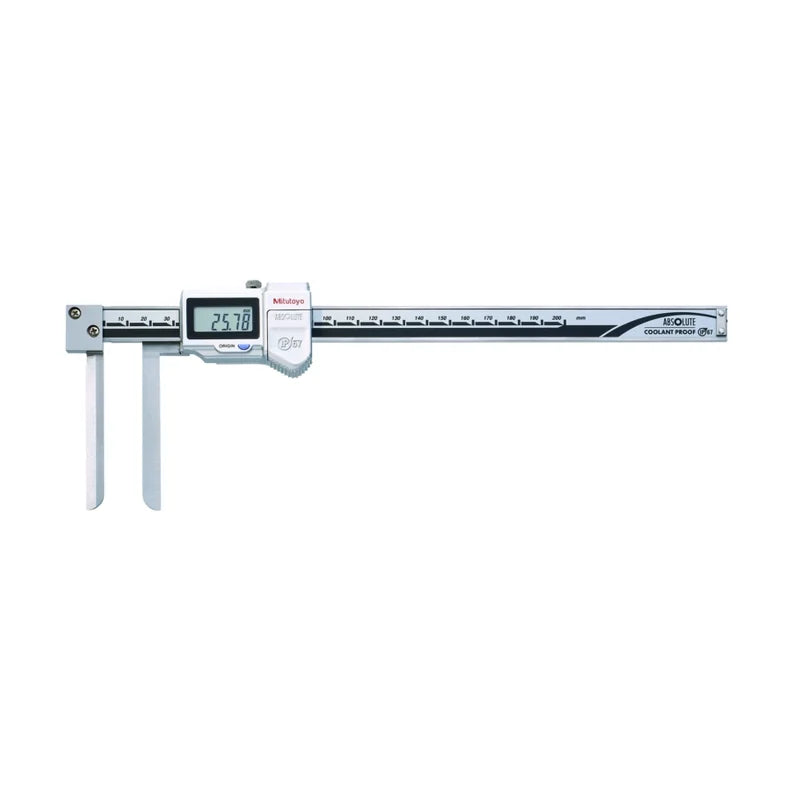

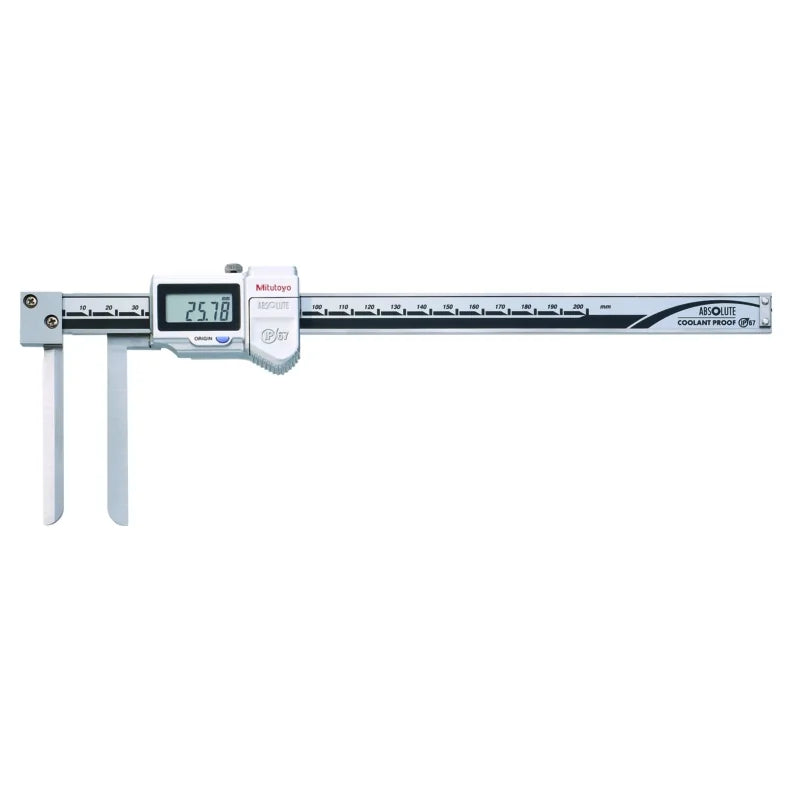

Caliper with knife-edge blade jaws Mitutoyo 573-643-20, measuring range 10.1-200 mm, IP67. Designed for inside measurements in hard-to-reach places; designed for taking measurements in places that are difficult to reach; long, narrow jaws.

Key features

  • Designed for inside measurements in hard-to-reach places
  • Designed for taking measurements in places that are difficult to reach
  • Long, narrow jaws

Description

Caliper for inside measurements with long, narrow jaws

Technical data

Measuring range 10–200 mm
Depth rod None
Max. permissible error S MPE ±0.05 mm
Max. response speed Unlimited
ORIGIN Yes
Automatic power-off after 20 minutes of inactivity Yes
Low-voltage alarm Yes
Data output Yes
Battery life Approx. 5 years under normal operating conditions
Mass 227 g
Mitutoyo code 573-643-20

Supplied with

In a box, with SR44 battery

Compatible accessories

  • 06AFM380A – USB Input Tool Direct (Digimatic to USB), Digimatic /2, with data button, IP caliper type – Mitutoyo 06AFM380A
  • 02AZD880G – U-WAVE-T, buzzer type, wireless transmitter – Mitutoyo 02AZD880G
  • 02AZD730G – U-WAVE-T, with IP67, wireless transmitter – Mitutoyo 02AZD730G

Spare parts and consumables

  • 63AAA800 – SR44 battery 1.5 V Mitutoyo 63AAA800

Documentation

Price and availability

Models without a displayed price are offered in a configuration defined together with our technical support: contact us for a quote stating the application and measuring range.

Selection guide: Calipers with knife-edge jaws

Caliper with knife-edge jaws Mitutoyo 573-643-20, measuring range 10.1-200 mm, IP67. Designed for inside measurements in hard-to-access points; designed for measuring in places that are difficult to reach; long, narrow jaws.

Choose the caliper according to measuring range (10–200 mm), environment (IP67 for coolants and dust; standard AOS for the workshop and metrology room; carbon fibre for large ranges and light weight) and jaw shape (standard, knife-edge for grooves and small holes, carbide-tipped for abrasive surfaces, extra-long for deep features). Models "with data output" allow measurements to be transferred to a PC or tablet via Digimatic or U-WAVE cables.

If in doubt, contact us: our technical support will recommend the model, measuring range and accessories suited to your application.

Integration and programming

Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.

For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.

Calibration and repair

The instrument is supplied with Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER manages it through accredited laboratories. Periodically check the zero with the jaws closed and that the slider has no play; clean the beam and jaws after use with coolants.

Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us, stating the model and serial number.
