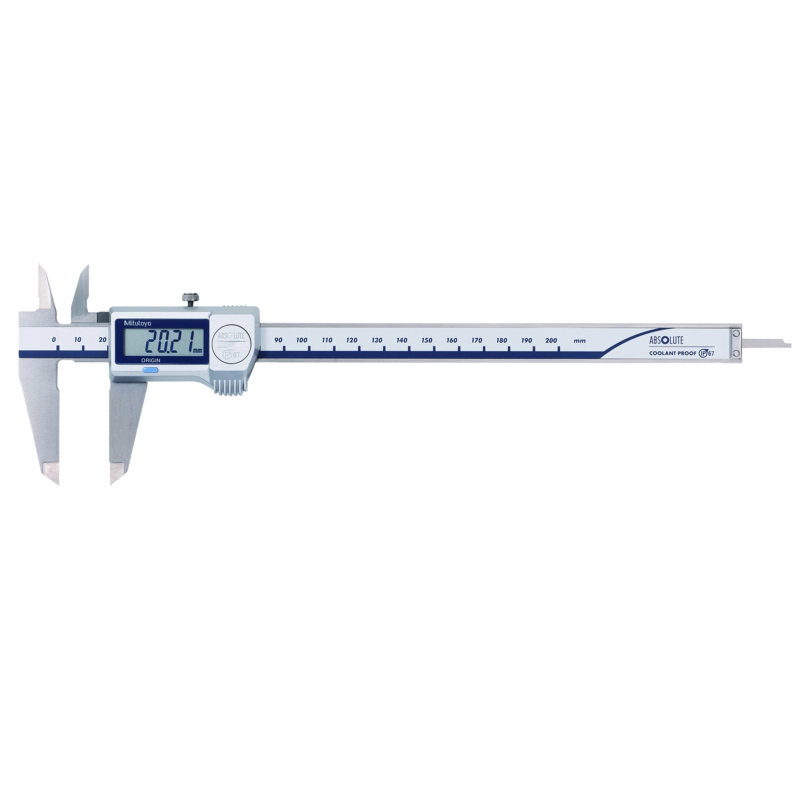

ABSOLUTE Digimatic IP67 caliper - carbide-tipped jaws Mitutoyo 500-722-20, measuring range 0-200 mm, carbide-tipped outside jaws, IP67
This product is priced individually. Fill in the form to receive a dedicated quote.
Informazioni di prodotto e di utilizzo
ABSOLUTE Digimatic IP67 caliper - carbide-tipped jaws Mitutoyo 500-722-20, measuring range 0-200 mm, carbide-tipped outside jaws, IP67. ABSOLUTE system; The high resistance to liquids and dust (IP 67) allows use in the presence of lubricants and coolants; In accordance with EN60529, the instrument can be temporarily fully immersed in water without damage.
Key features
- ABSOLUTE system
- The high resistance to liquids and dust (IP 67) allows use in the presence of lubricants and coolants
- In accordance with EN60529, the instrument can be temporarily fully immersed in water without damage
- Exceptionally long battery life.
Description
Robust calipers with carbide-tipped measuring jaws
Technical data
| Measuring range | 0–200 mm |
| Depth rod | flat |
| Adjustment thumb roller | Yes |
| Data output | Yes |
| Maximum permissible error (MPE), full range | ±0.02 mm |
| Max. permissible error S MPE | ±0.04 mm |
| Resolution | 0.01 mm |
| Max. response speed | Unlimited |
| Display | LCD, character height 9 mm |
| ORIGIN | Yes |
| Automatic power-off after 20 minutes of inactivity | Yes |
| Low-voltage alarm | Yes |
| Battery life | Approx. 5 years under normal use |
| Mass | 198 g |
| L | 290 mm |
| A | 20 mm |
| B | 24.5 mm |
| C | 18.1 mm |
| D | 50 mm |
| H | 16 mm |
| Mitutoyo code | 500-722-20 |
Supplied with
box · SR44 battery · inspection certificate
Compatible accessories
- 06AFM380A – USB Input Tool Direct (Digimatic to USB), Digimatic /2, with data button, IP caliper type – Mitutoyo 06AFM380A
- 264-620 – U-WAVE fit, IP67 model, wireless transmitter for caliper – Mitutoyo 264-620
- 264-621 – U-WAVE fit, buzzer type, wireless transmitter for caliper – Mitutoyo 264-621
- 264-624 – U-WAVE fit Bluetooth, IP67 type, wireless transmitter for caliper – Mitutoyo 264-624
- 264-625 – U-WAVE fit Bluetooth, with buzzer, wireless transmitter for caliper – Mitutoyo 264-625
- 02AZF310 – Connection unit for IP caliper and micrometer, with data button, for U-WAVE fit and U-WAVE fit Bluetooth – Mitutoyo 02AZF310
- 050084-10 – Caliper support base, width 100 mm, for ranges 100, 150, 200 mm – Mitutoyo 050084-10
Spare parts and consumables
- 63AAA800 – SR44 battery, 1.5 V Mitutoyo 63AAA800
- 050083-10 – Caliper support base, width 75 mm, for ranges 100, 150, 200 mm – Mitutoyo 050083-10
Documentation
- Brochure: prit 1563 digimatic calipers it
- Document: 10-97-81-catalog extract-calibri absolute digimatic ip67 becchi i
Price and availability
Models without a displayed price are offered in a configuration defined together with our technical support: contact us for a quote stating the application and measuring range.
Selection guide: ABSOLUTE Digimatic IP67 calipers - carbide-tipped jaws
ABSOLUTE Digimatic IP67 caliper - carbide-tipped jaws Mitutoyo 500-722-20, measuring range 0-200 mm, carbide-tipped jaws for outside measurements, IP67. ABSOLUTE system; the high resistance to liquids and dust (IP67) allows use in the presence of lubricants and coolants; in accordance with EN60529, the instrument can be fully immersed in water temporarily without damage.
Choose the caliper according to measuring range (0–200 mm), environment (IP67 for coolants and dust; standard AOS for the workshop and metrology room; carbon fibre for large ranges and light weight) and jaw shape (standard; knife-edge for grooves and small holes; carbide-tipped for abrasive surfaces; extra-long for deep parts). Models "with data output" allow measurements to be transferred to a PC or tablet using Digimatic or U-WAVE cables.
If in doubt, contact us: our technical support will recommend the model, measuring range and accessories best suited to your application.
Integration and programming
Digimatic instruments with data output transfer measurements using the Mitutoyo Digimatic protocol: via a cable with data button to a USB Input Tool (the PC receives them as keyboard input, directly in Excel or in the SPC software), or wirelessly with the U-WAVE transmitters (USB or Bluetooth receiver). The indicators can be connected to multi-channel display units and to statistical process control systems.
For integration into test stations, measuring fixtures or SPC software, our technical team will support you in choosing cables, receivers and software.
Calibration and repair
The instrument is supplied with a Mitutoyo inspection certificate. For ISO 9001 / IATF quality systems, periodic calibration (typically annual) with a traceable certificate is recommended; RODER arranges it through accredited laboratories. Periodically check the zero with the jaws closed and make sure there is no play in the slider; clean the beam and the jaws after use with coolants.
Service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate (including ACCREDIA through partner laboratories), periodic verification and repairs of Mitutoyo instruments in Italy. Contact us with the model and serial number.
