Horizontal manual load stand Shimpo TTST-1 for TTC testers, tools from 150 to 600 mm

Product available on request

This product is priced individually. Fill in the form to receive a dedicated quote.

You are requesting a quote for: Horizontal manual load stand Shimpo TTST-1 for TTC testers, tools from 150 to 600 mm
SKU: TTST-1
Manufacturer: SHIMPO

Informazioni di prodotto e di utilizzo

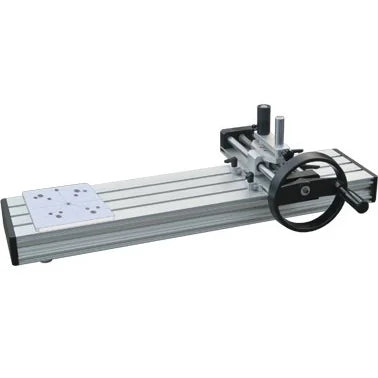

Horizontal manual load stand Shimpo TTST-1 for TTC testers: applies torque in a controlled way to torque wrenches and tools from 150 to 600 mm long, travel 200 mm, maximum force 102 kg.

Description

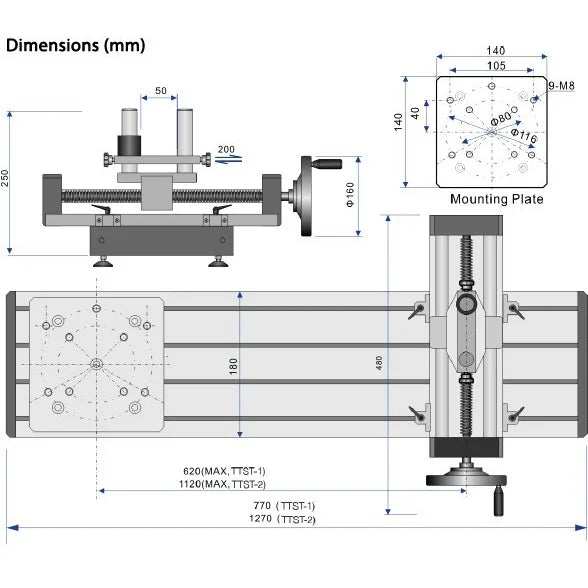

The horizontal TTST-1 and TTST-2 stands are designed for use with the TTC tester. They allow torque to be applied in a controlled way to a variety of torque tools: the large handwheel moves the tool under test, for example a torque wrench, at a speed chosen by the operator so that the verification can be completed correctly. The TTST-1 accepts tools from 150 to 600 mm long with a travel of 200 mm; maximum force 102 kg (225 lb); weight 12 kg.

Typical applications

  • Torque wrench verification with the TTC

Compatible with

  • TTC-E-200 – Bench-top torque tester Shimpo TTC-E-200 for torque tools, measuring range 10–200 N·m (7.4–148 ft·lbf)
  • TTC-E-500 – Bench-top torque tester Shimpo TTC-E-500 for torque tools, measuring range 25–500 N·m (18.4–368 ft·lbf)
  • TTC-E-800 – Bench-top torque tester Shimpo TTC-E-800 for torque tools, measuring range 40–800 N·m (29.5–590 ft·lbf)
  • TTC-I-10 – Bench-top torque tester Shimpo TTC-I-10 for torque tools, measuring range 0.5–10 N·m (4.4–88.5 in·lbf)
  • TTC-I-100 – Bench-top torque tester Shimpo TTC-I-100 for torque tools, measuring range 5–100 N·m (44–885 in·lbf)
  • TTC-I-2 – Bench-top torque tester Shimpo TTC-I-2 for torque tools, measuring range 0.1–2 N·m (0.89–17.7 in·lbf)
  • TTC-I-20 – Bench-top torque tester Shimpo TTC-I-20 for torque tools, measuring range 1–20 N·m (8.9–177 in·lbf)
  • TTC-I-5 – Bench-top torque tester Shimpo TTC-I-5 for torque tools, measuring range 0.25–5 N·m (2.2–44.3 in·lbf)
  • TTC-I-50 – Bench-top torque tester Shimpo TTC-I-50 for torque tools, measuring range 2.5–50 N·m (22–443 in·lbf)

Documentation

Price and availability

Models without a listed price are offered with a configuration defined together with our technical support: contact us for a quote stating your application and measuring range.

Selection guide

Shimpo TTST-1 manual horizontal load stand for TTC testers: applies torque in a controlled way to torque wrenches and tools from 150 to 600 mm long, travel 200 mm, maximum force 102 kg.

Please check compatibility with your instrument before ordering: TTC.

If in doubt, contact us: our technical support will recommend the right model and capacity for your application.

Integration

Original Shimpo accessory or spare part: it fits without modifications to the instrument and requires no configuration. For combining it with test systems or test stands, our technical team is at your disposal.

Calibration and repair

Mechanical accessories do not require calibration; after replacing load cells, sensors or grips, we recommend checking the instrument against a reference standard.

After-sales service: RODER S.r.l. – INNOVACHECK division handles calibration with certificate, periodic verification and repairs of Shimpo instruments in Italy. Contact us stating the model and serial number.
