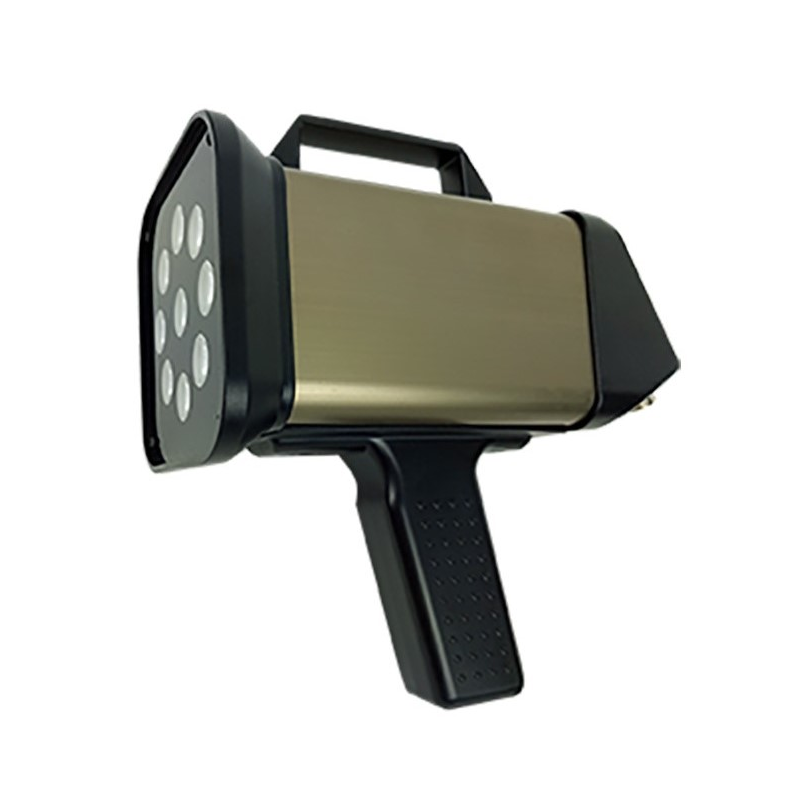

DT-362 LED Stroboscope - Universal Power

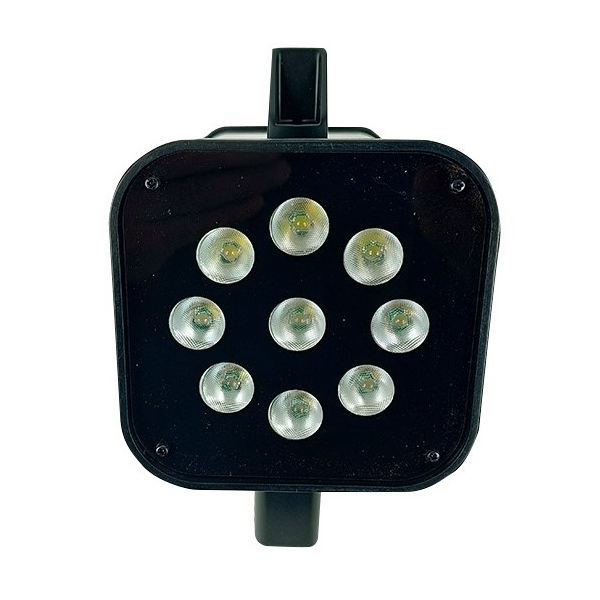

The DT-362 is a portable, line-powered stroboscope that utilizes super bright CREE High-Powered LED lamps. The DT-362’s LED array provides a bright, stable strobe light over a wide measurement range with a lifetime far exceeding xenon-lit stroboscopes. Combined with a large, backlit LCD display, operation is simple with the 8-button keypad and quick rate-adjustment dial. Phase shift, flash duration, plus flash rate all are easily viewed and adjustable. The universal power range (85-240 VAC) allows one model to be utilized on various power voltages in a multitude of countries. The unit can function by user altered flash frequency or from a remote sensor’s signal input which will automatically adjust the stroboscope to the corresponding process fluctuations.

Features

• LED technology greatly extends operation life and eliminates need to replace burned out bulbs

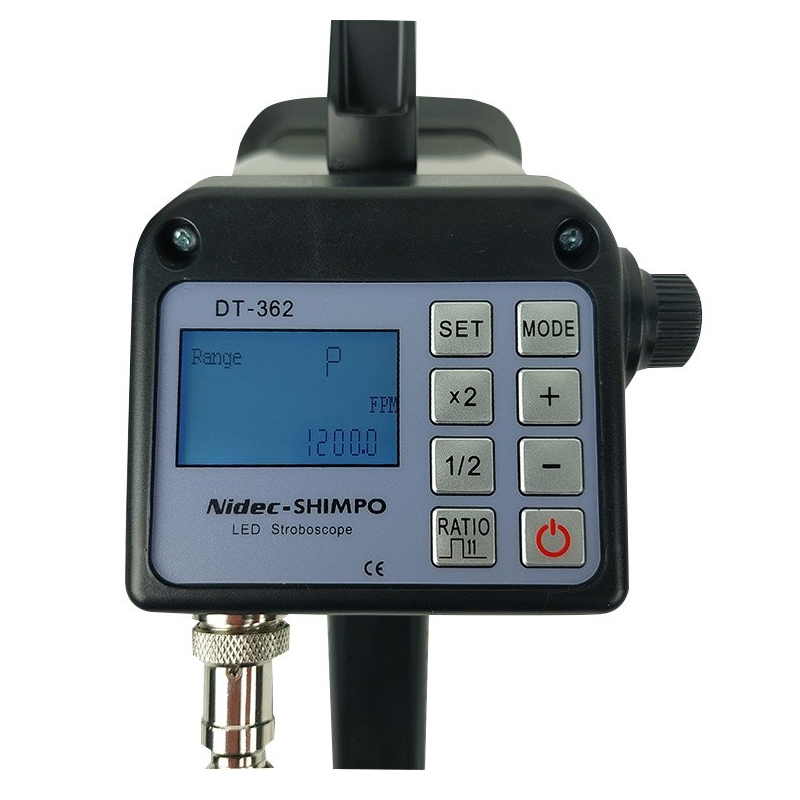

• Backlit LCD display aids usage while operating in dimly lit areas
• Easy adjustment with flash dial combined with x2/÷2 and fine tuning +/- buttons enables precise flash setting
• Universal power capability from 85-240 VAC allows one model to handle a multitude of local power requirements
• Adjustable Flash Pulse duration achieves sharper images for detailed inspection
• Phase shift (in degrees of delay time) enables visual analysis of rotating or reciprocating objects through all points of motion/time/angle
• Flash rate may be synchronized with process speed with input from sensor or controller
• 1/4-20 UNC connection for permanent mount applications (remove bottom handle)
