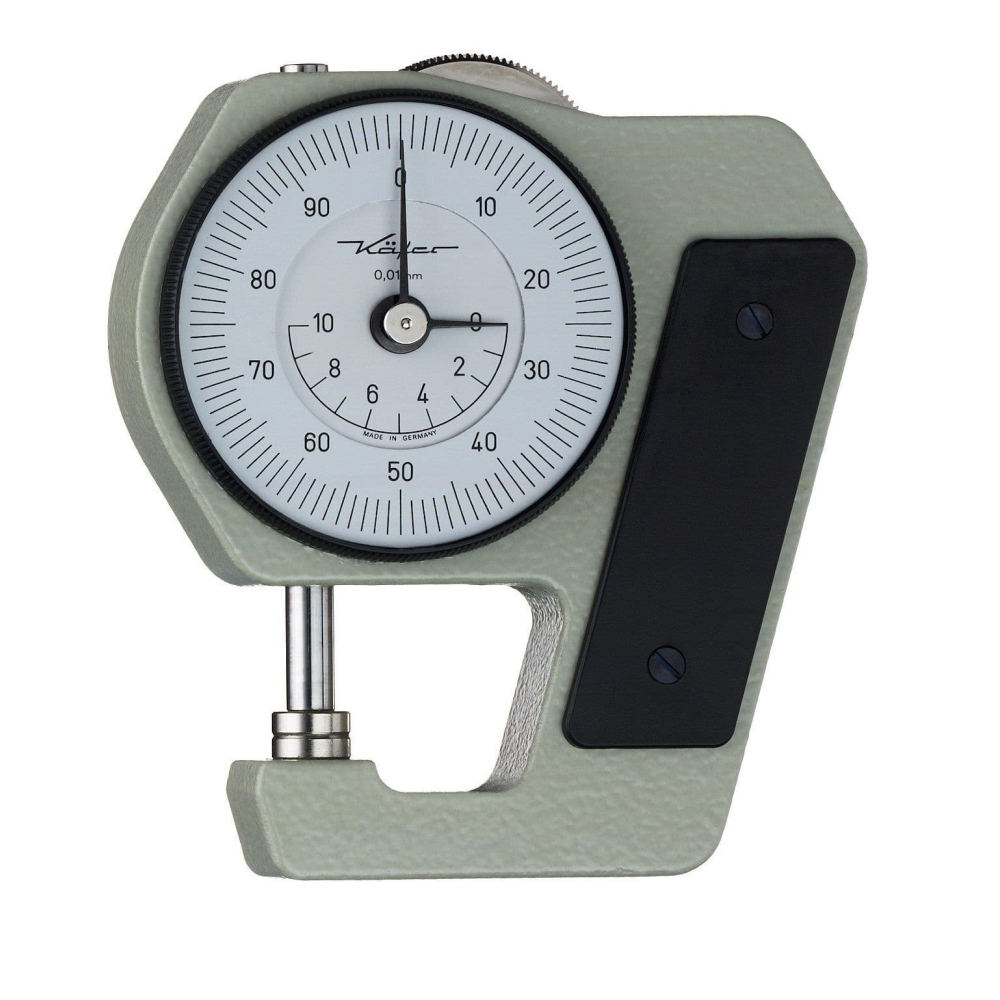

Pocket Dial Thickness Gauge J 15, 0 - 10 mm reading, 0.01 mm Kafer
Pocket Dial Thickness Gauge J 15, 0 - 10 mm reading, 0.01 mm Kafer
The Pocket Dial Thickness Gauge J 15 distinguishes itself distinctly by its up to date and ergonomical design. The Pocket Dial Thickness Gauge J 15 is equipped with plastic insulating plates. It is supplied in a convenient box with transparent lid. The Pocket Dial Thickness Gauge J 45 is of similar design except for the jaw depth of 45 mm.
- Measuring range: 10 mm
- Analog instrument with 0.01 mm resolution
- Depth of jaw: 18 mm
The contact points are in contact when the Pocket Dial Thickness Gauges J 12 and J 15 are not in use. The serrated lifting wheel opens them for the insertion of the component. The size can be easily read off the scale. The instruments can be zeroed by using the knurled adjusting bezel.
Standard contact points 6.35 mm Ø will be supplied unless otherwise stated on the order.
The optional contact points are available on request. The type of the contact point does not affect the price of the Pocket Dial Thickness Gauges.
Please note that the contact points are not interchangeable.
Types of pressers available, make your selection in the table below:
Presser type standard, flat diameter 6.35 mm (J 15 Standard)
Presser type flat diameter 10 mm (J 15 Piatto)
Presser type convex (J 15 Convesso)
